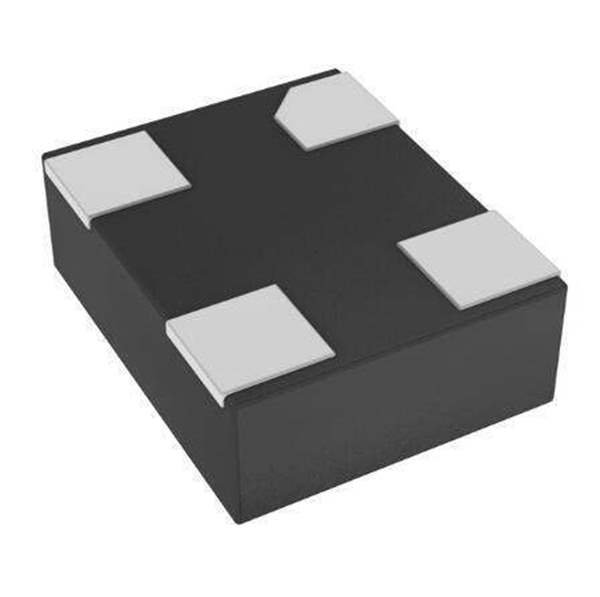

DSC1001DL2-074.2500 Microchip Technology
Same model may have multiple batches, images only for reference.

DSC1001DL2-074.2500

Part No DSC1001DL2-074.2500
Manufacturer Microchip Technology
Catalog Oscillators
Description MEMS OSC XO 74.2500MHZ CMOS SMD
Datasheet
DSC1001DL2-074.2500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Microchip Technology
Category Crystals, Oscillators, Resonators Oscillators
Packaging  Tube
Part Status Active
Frequency 74.25 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±25ppm
Operating Temperature -40°C ~ 105°C
Current - Supply (Max) 8.7mA
Ratings AEC-Q100
Mounting Type Surface Mount
Win Source Part Number WS1211277-DSC1001DL2-074.2500
Ultra Librarian 3D Model Ultra Librarian DSC1001DL2-074.2500 CAD Model

Description

74.25 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-VDFN
