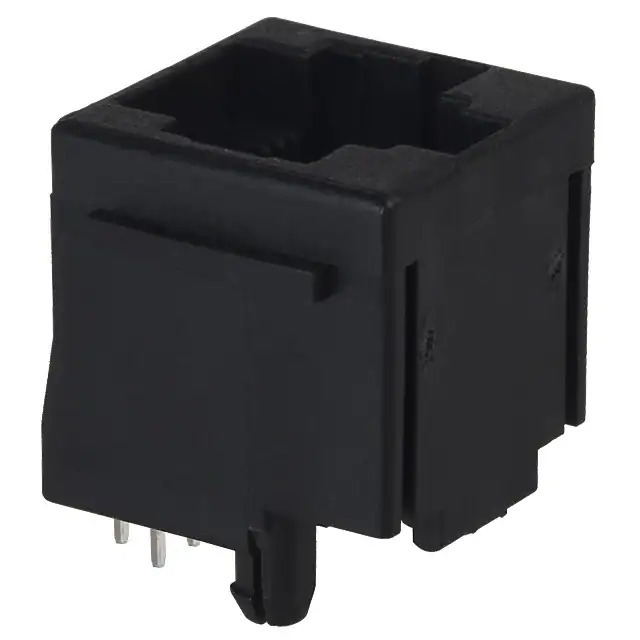

5520259-4 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr TE Connectivity AMP Connectors
Series -
Package Tray
Product Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Number of Ports 1
Number of Rows 1
Mounting Type Through Hole
Orientation Vertical
Termination Solder
Shielding Unshielded
Ratings Cat3
Features Board Lock, Panel Stops
LED Color Does Not Contain LED
Ingress Protection -
Tab Direction User Selectable
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Housing Material Polybutylene Terephthalate (PBT), Polyester
Temperature Range - Operating -40°C ~ 85°C
Base Product Number 5520259
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362642-5520259-4
Ultra Librarian 3D Model Ultra Librarian 5520259-4 CAD Model

Description

The TE Connectivity AMP Connectors Modular Connector Jack is a high-quality jack connector designed for use in networking applications.

  • Product Name: Modular Connector Jack
  • Manufacturer: TE Connectivity AMP Connectors
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Positions/Contacts: 8
  • Number of Rows: 1
  • Pitch: 8p8c (RJ45, Ethernet)
  • Shielding: Unshielded
  • Operating Temperature: -40°C to 85°C
  • Status: Active
  • Packaging: Tray
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0μin (1.27μm)
  • Housing Material: Polybutylene Terephthalate (PBT) and Polyester
  • Mounting: Through Hole
  • Orientation: Vertical
  • LED: No
