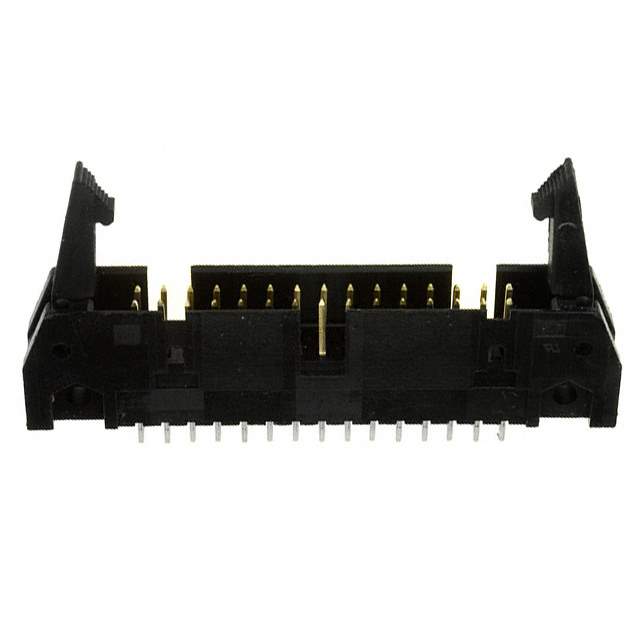

5499923-7 Real Image
Same model may have multiple batches, images only for reference.

5499923-7

Part No 5499923-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 30POS 2.54MM  /  Connector Header Through Hole 30 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.155" (3.94mm)
Overall Contact Length 0.684" (17.37mm)
Insulation Height 0.549" (13.94mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Features Keying Slot, Mounting Flange
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5499923
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names AHL30H,54999237
Standard Package 30
Win Source Part Number 1183613-5499923-7
Ultra Librarian 3D Model Ultra Librarian 5499923-7 CAD Model

Description

The 1033210 is a 30-position board to cable/wire header connector from TE Connectivity AMP Connectors.

  • Series: AMP-Latch
  • Features: Keying slot and mounting flange
  • Connector Type: Header
  • Contact Type: Male pin
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Shrouded: 4 walls
  • Voltage Rating: 250VAC
  • Current Rating: 1A per contact
  • Termination: Solder
  • Fastening Type: Latch lock/eject hooks
  • Contact Finish-Mating: Gold or gold-palladium with a thickness of 15.0μin (0.38μm)
  • Contact Finish-Post: Tin with a thickness of 100.0μin (2.54μm)
  • Overall Contact Length: 0.684 inches (17.37mm)
  • Contact Shape: Square
  • Temperature Range: -65°C to 105°C
