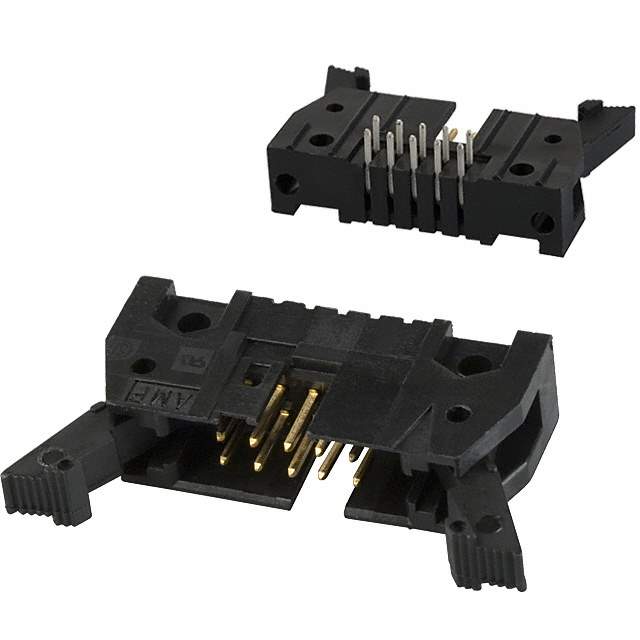

5499913-1 Real Image
Same model may have multiple batches, images only for reference.

5499913-1

Part No 5499913-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 10POS 2.54MM  /  Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.315" (8.00mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Features Keying Slot, Mounting Flange
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5499913
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 54999131,2266-5499913-1,-5499913-1-SI,Q2775717,AHB10H
Standard Package 72
Win Source Part Number 1002299-5499913-1
Ultra Librarian 3D Model Ultra Librarian 5499913-1 CAD Model

Description

The AMP-Latch header with 10 positions is a male pin connector that comes with a keying slot and mounting flange.

  • Positions: 10
  • Connector Type: Male Pin
  • Features: Keying Slot, Mounting Flange
  • Application: Board-to-Cable/Wire
  • Pitch-Mating: 0.100 inches (2.54mm)
  • Rows: Two
  • Fastening Type: Short Latch Lock/Eject Hooks
  • Packaging: Bulk
  • Contact Material: Brass
  • Contact Finish-Mating: Gold or Gold-Palladium, 15.0μin (0.38μm)
  • Contact Finish-Post: Tin, 100.0μin (2.54μm)
  • Voltage Rating: 250VAC
  • Current Rating: 1A per Contact
  • Temperature Range: -65°C to 105°C
  • Mounting Style: Through-Hole, Right-Angle
  • Shrouded: 4 Walls
  • Insulation Height: 0.315 inches (8.00mm)
  • Material Flammability Rating: UL94 V-0
  • REACH Status: Unaffected
