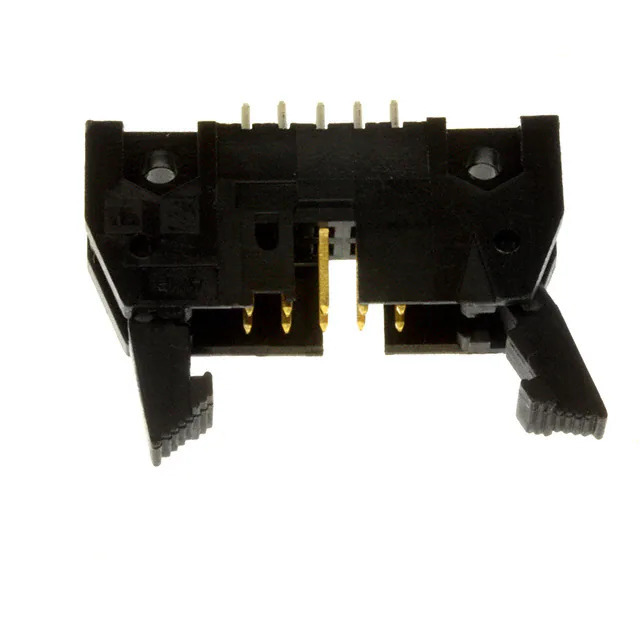

5499160-1

Name: 5499160-1
Brand: TE Connectivity
SKU: 1377514
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	5499160-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMP-Latch
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.110" (2.79mm)
Overall Contact Length	0.639" (16.23mm)
Insulation Height	0.549" (13.94mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	-
Insulation Material	-
Features	Keying Slot, Mounting Flange
Temperature Range - Operating	-55°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	-
Base Product Number	5499160
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1377514-5499160-1
Ultra Librarian 3D Model	Ultra Librarian 5499160-1 CAD Model

Description

The TE Connectivity AMP Connectors AMP-Latch series male pin header is a versatile connector designed for board-to-cable/wire applications from TE Connectivity AMP Connectors.

Series: AMP-Latch
Pitch: 0.100" (2.54mm)
Number of Positions: 10
Number of Rows: 2
Mounting Type: Through Hole
Keying: Keying Slot
Mounting Feature: Mounting Flange
Shrouding: Shrouded - 4 Wall
Locking Type: Latch Lock/Eject Hooks
Current Rating: 1A
Contact Length: 0.639" (16.23mm)
Insulation Height: 0.549" (13.94mm)
Product Status: Active
