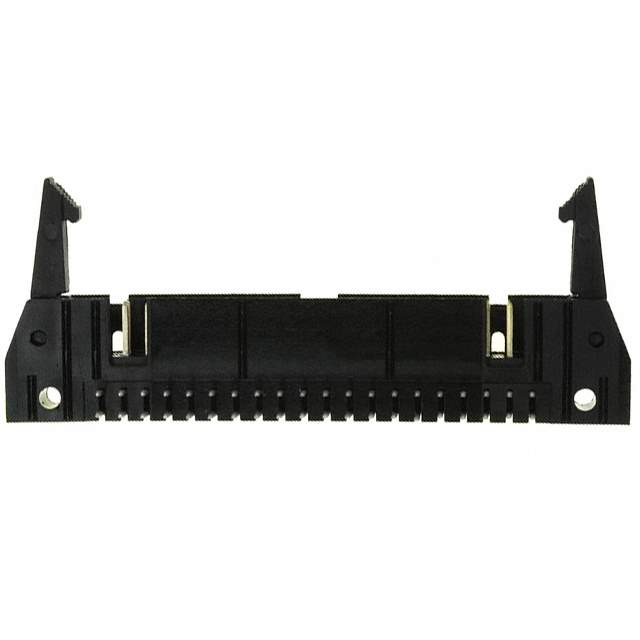

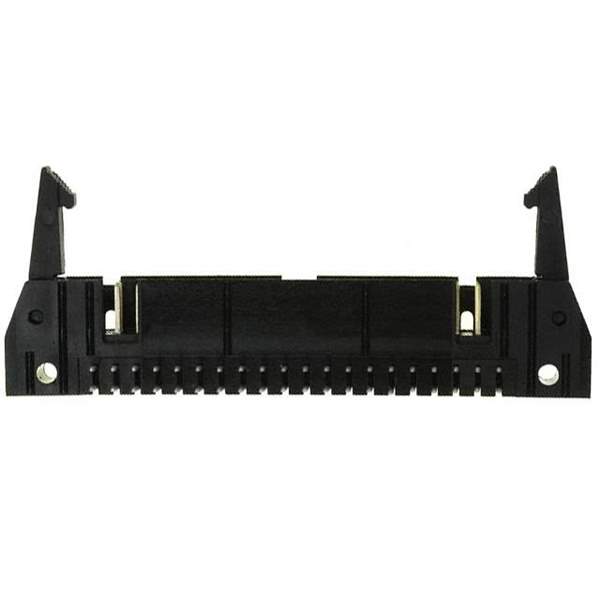

5499141-9 Real Image1 5499141-9 Real Image2
Same model may have multiple batches, images only for reference.
5499141-9 Real Image1 5499141-9 Real Image2
5499141-9 Real Image1 5499141-9 Real Image2
Same model may have multiple batches, images only for reference.

5499141-9

Part No 5499141-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 2.54MM / Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr TE Connectivity
Series AMP-Latch
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length -
Insulation Height 0.315" (8.00mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material -
Features Keying Slot, Mounting Flange
Temperature Range - Operating -65°C ~ 105°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC
Mated Stacking Heights -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications -
Base Product Number 5499141
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 32 pcs
Win Source Part Number 1380924-5499141-9
Ultra Librarian 3D Model Ultra Librarian 5499141-9 CAD Model

Description

The AMP-Latch header, manufactured by TE Connectivity, is a versatile connector designed for board to cable/wire applications.

  • Part Status: Active
  • Connector Type: Header, Male Pin
  • Number of Positions: -
  • Pitch: -
  • Number of Rows: -
  • Row Spacing: -
  • Mounting Type: Through Hole, Right Angle
  • Fastening Type: -
  • Contact Finish - Mating: -
  • Contact Finish Thickness - Mating: -
  • Insulation Height: -
  • Operating Temperature: -
  • Voltage Rating: 250VAC
  • Current Rating (Per Contact): 1A
  • Contact Material: -
  • Contact Finish - Post: -
  • Mated Stacking Heights: -
  • Ingress Protection: -
  • Material Flammability Rating: -
  • Color: -
  • Moisture Sensitivity Level (MSL): -
  • Features: Shrouded
  • Applications: Board to Cable/Wire
