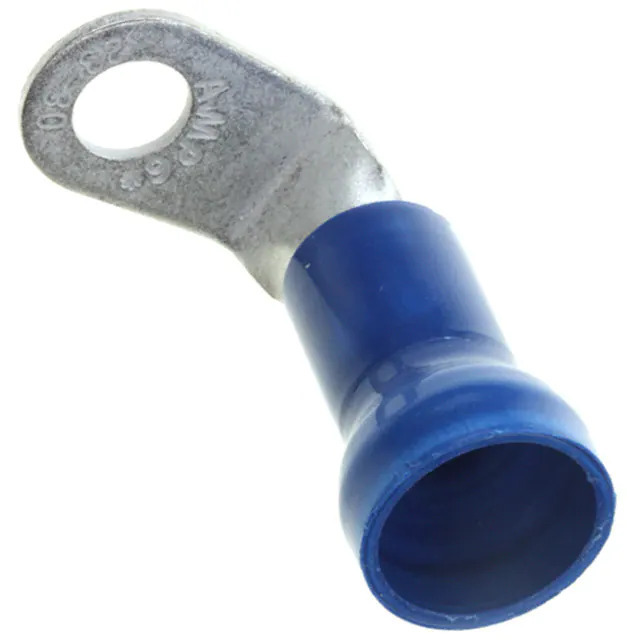

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series Plasti-Grip
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 1/4 Stud
Thickness 0.045" (1.14mm)
Width - Outer Edges 0.500" (12.70mm)
Length - Overall -
Mounting Type Free Hanging (In-Line), Right Angle
Termination Crimp
Wire Gauge 6 AWG
Insulation Insulated with Heat Shrink
Features Serrated Termination
Color Blue
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.436" (11.07mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Base Product Number 54754
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365038-54754-1
Ultra Librarian 3D Model Ultra Librarian 54754-1 CAD Model

Description

The 1365038-54754-1 is a ring connector terminal from TE Connectivity AMP Connectors.

  • Series: Plasti-Grip series
  • Termination Method: Crimp
  • Wire Gauge: 6 AWG
  • Contact Finish: Tin
  • Insulation: Heat shrink
  • Product Status: Active
  • Base Product Number: 54754
  • HTSUS Code: 8536.90.4000
  • REACH Status: Vendor undefined
  • ECCN: EAR99
  • Feature: Serrated termination
