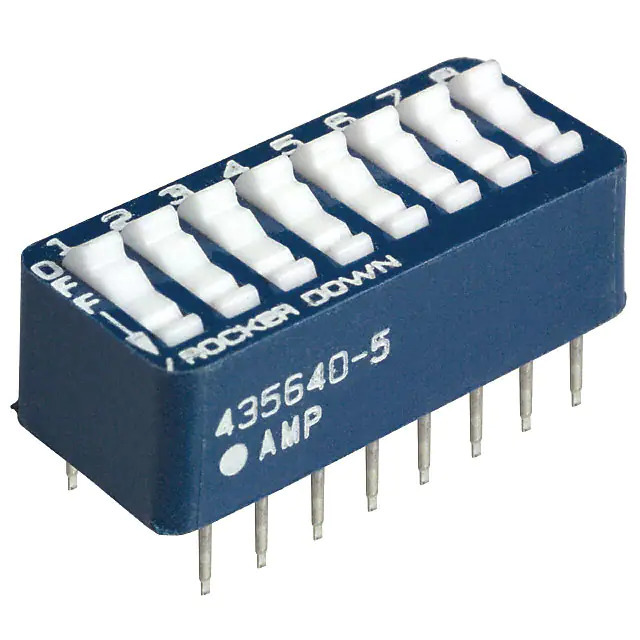

5435640-5 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series 7100
Package Tube
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 60mA
Voltage Rating 5VDC
Actuator Type Rocker
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.340" (8.64mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features -
Temperature Range - Operating -55°C ~ 105°C
Body Material Polyester (PET), Glass Filled
Length 0.880" (22.35mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number 5435640
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376410-5435640-5
Ultra Librarian 3D Model Ultra Librarian 5435640-5 CAD Model

Description

The 1376410-5435640-5 is a DIP switch from TE Connectivity ALCOSWITCH Switches.

  • Positions: 8
  • Temperature Range: -55°C to 105°C
  • Current Rating: 60mA
  • Voltage Rating: 5VDC
  • Circuit Configuration: SPST (Single Pole Single Throw)
  • Actuator Type: Rocker
  • Mounting: Through-Hole
  • Termination: PC Pins
  • Mechanical Life: 2,000 Cycles
  • Electrical Life: 2,000 Cycles
  • Material: Polyester (PET) with Glass Filling
  • Status: Active
  • Package: Tube
