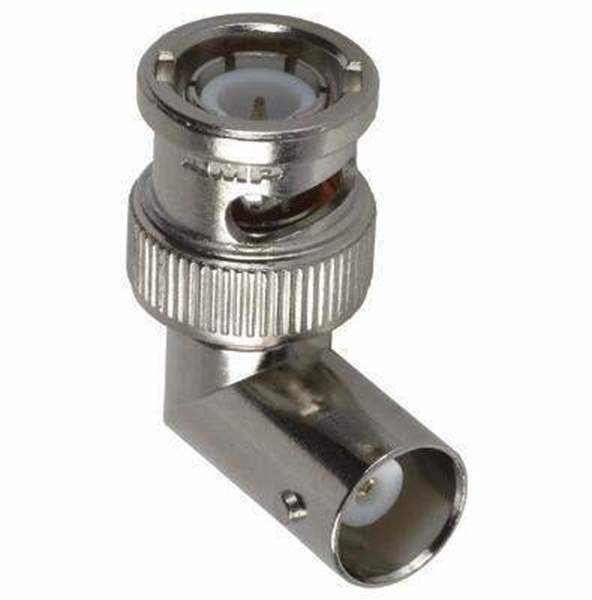

5415020-1TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

5415020-1

Part No 5415020-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT PLUG TO JACK BNC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Package Bulk
Product Status Active
Adapter Type Plug to Jack
Conversion Type Same Series
Center Gender Female to Male
Convert From (Adapter End) BNC Plug, Male Pin
Convert To (Adapter End) BNC Jack, Female Socket
Impedance 75 Ohms
Win Source Part Number WS1209279-5415020-1
Ultra Librarian 3D Model Ultra Librarian 5415020-1 CAD Model

Description

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket 75 Ohms
