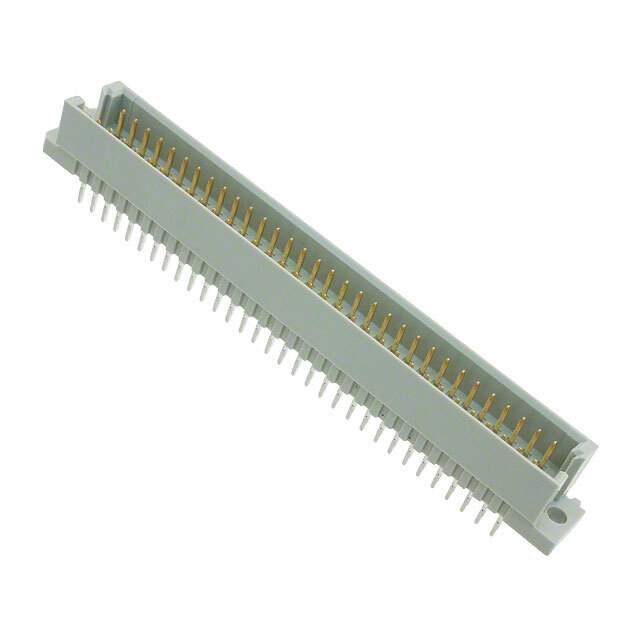

536098-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 96
Number of Positions Loaded 64
Pitch 0.100" (2.54mm)
Number of Rows 3
Style R
Level, Class 2
Mounting Type Through Hole
Termination Press-Fit
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Polyester, Glass Filled
Base Product Number 536098
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 536098-5-ND,-536098-5-SI,A101986,5360985
Standard Package 30
Win Source Part Number 986744-536098-5
Ultra Librarian 3D Model Ultra Librarian 536098-5 CAD Model

Description

TE Connectivity AMP Connectors 536098-5 is a plug connector with male pins used in backplane connections.

  • Positions Loaded: 96 positions loaded with 64 pins
  • Rows: 3
  • Pitch: 0.100 inches (2.54mm)
  • Termination: press-fit
  • Insulation Material: polyester and glass-filled insulation material
  • Flammability Rating: standard package 30
  • Temperature Range: -55°C to 125°C
  • Current Rating: amps
  • REACH: affected
  • MSL Level: 1
  • Estimated Production Lead Time: 16 weeks
