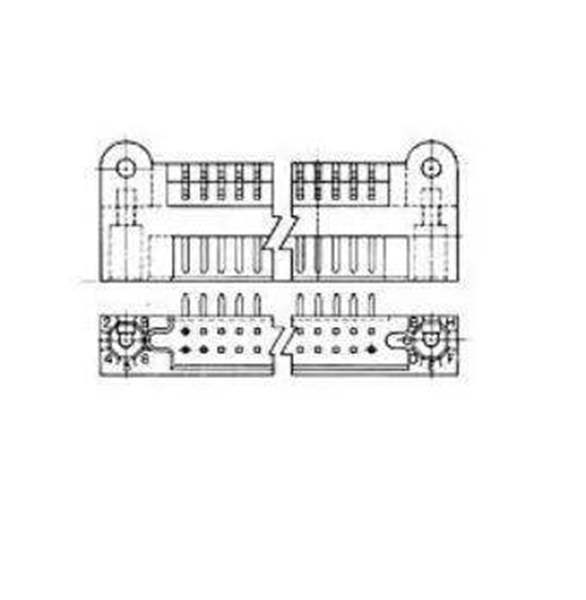

530942-5TE Connectivity Aerospace, Defense and Marine
Same model may have multiple batches, images only for reference.

530942-5

Part No 530942-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 70POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity Aerospace, Defense and Marine
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Shrouding Shrouded - 3 Wall
Fastening Type Push-Pull
Contact Length - Mating 0.181" (4.60mm)
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.330" (8.38mm)
Win Source Part Number WS1209206-530942-5
Ultra Librarian 3D Model Ultra Librarian 530942-5 CAD Model

Description

Connector Header Through Hole, Right Angle 70 position 0.100" (2.54mm)
