Same model may have multiple batches, images only for reference.

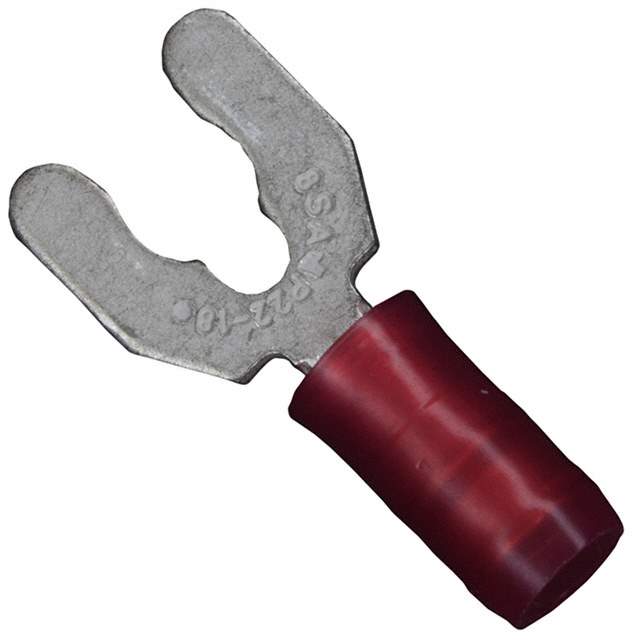

52930 Real Image
Same model may have multiple batches, images only for reference.

52930

Part No 52930
Manufacturer TE Connectivity
Catalog Terminals
Description CONN SPADE TERM 16-22AWG #8 RED / Red 8 Stud Spade Terminal Connector Crimp 16-22 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Spade Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Spring, Snap
Stud/Tab Size 8 Stud
Width - Outer Edges 0.375" (9.53mm)
Length - Overall 0.860" (21.84mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Finish Tin
Contact Material Copper
Insulation Diameter 0.080" ~ 0.125" (2.03mm ~ 3.18mm)
Material - Insulation Polyamide (PA), Nylon
Length - Ring Center to Termination 0.281" (7.14mm)
Length - Termination 0.404" (10.26mm)
Tongue Inside Opening 0.164" (4.17mm)
Base Product Number 5293
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A1089,2266-52930
Standard Package 1,000
Win Source Part Number 1333814-52930
Ultra Librarian 3D Model Ultra Librarian 52930 CAD Model

Description

The TE Connectivity AMP Connectors 1333814-52930 is a spade connector with a contact finish of tin.

  • Wire Gauge: 16-22 AWG
  • Contact Material: Copper
  • Insulation Material: Polyamide (PA), Nylon
  • Insulated: Yes
  • Length: 0.860" (21.84mm)
  • Width: 0.375" (9.53mm)
  • Tongue Inside Opening: 0.164" (4.17mm)
  • Stud/Tab Size: 8 stud
  • Termination Feature: Serrated
  • Termination: Crimped
  • RoHS3 Compliant: Yes
  • Packaging: Bulk
  • Standard Package Quantity: 1,000
