521011-2 TE Connectivity
Same model may have multiple batches, images only for reference.

521011-2

Part No 521011-2
Manufacturer TE Connectivity
Catalog Terminals

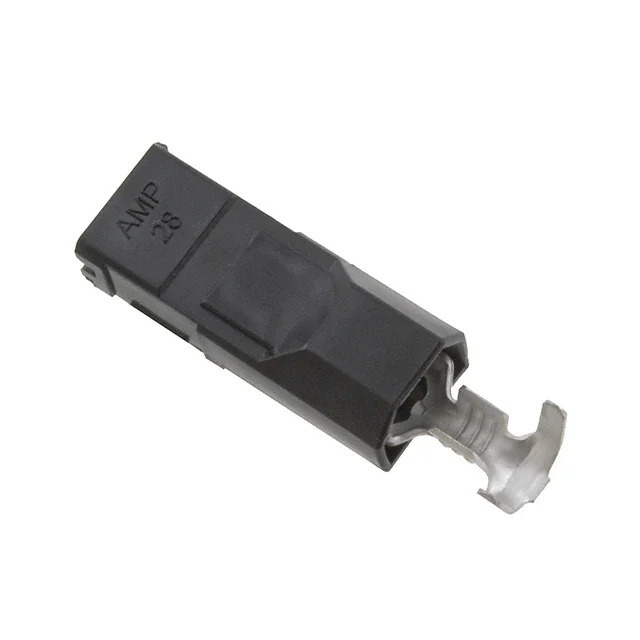

Description CONN QC RCPT 14-18AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 14-18 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Ultrapod
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall 1.365" (34.67mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color Black
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.170" (2.79mm ~ 4.32mm)
Base Product Number 521011
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364864-521011-2
Ultra Librarian 3D Model Ultra Librarian 521011-2 CAD Model

Description

The TE Connectivity AMP Connectors Quick Disconnect Connector is a versatile connector suitable for a wide range of applications.

  • Series: Ultrapod
  • Mounting Type: Free-Hanging (In-Line)
  • Insulation: Fully Insulated
  • Length: 1.365 inches (34.67mm)
  • Color: Black
  • Contact Finish: Tin
  • Wire Gauge: 14-18 AWG
  • Terminal Type: Standard
  • Termination: Crimp
  • Product Status: Active
