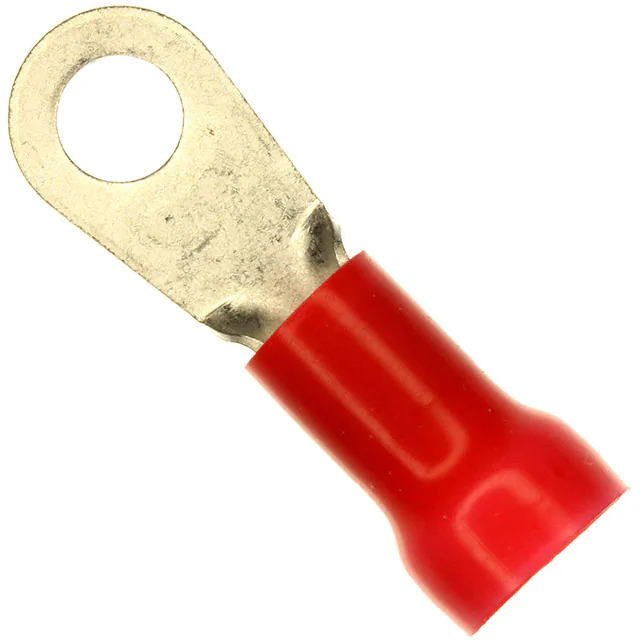

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series Plasti-Grip
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size 1/4 Stud
Thickness 0.040" (1.02mm)
Width - Outer Edges 0.478" (12.14mm)
Length - Overall 1.586" (40.28mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 8 AWG
Insulation Insulated
Features Serrated Termination
Color Red
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.360" (9.14mm)
Material - Insulation Poly-Vinyl Chloride (PVC)
Base Product Number 52041
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364780-52041-1
Ultra Librarian 3D Model Ultra Librarian 52041-1 CAD Model

Description

The TE Connectivity AMP Connectors Plasti-Grip Ring Connector is a terminal designed for use in electrical connections.

  • Base Product Number: 52041
  • Wire Gauge: 8 AWG
  • Insulation: Insulated
  • Color: Red
  • Material: Copper
  • Termination: Crimp
  • Features: Serrated Termination
  • Mounting Type: Free Hanging (In-Line)
