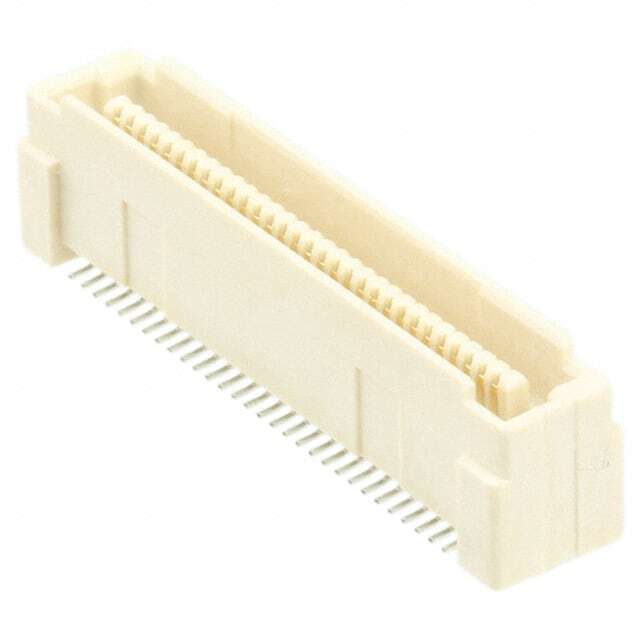

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series Free Height (FH)
Package Tube
Product Status Active
Connector Type Plug, Center Strip Contacts
Number of Positions 60
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 8mm, 12mm, 16mm, 20mm
Height Above Board 0.299" (7.60mm)
Base Product Number 5179031
Standard Package 16 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848684-5179031-2
Ultra Librarian 3D Model Ultra Librarian 5179031-2 CAD Model

Description

The Free Height (FH) series is a versatile rectangular connector array designed for board-to-board or mezzanine applications from TE Connectivity.

  • Positions: 60
  • Rows: 2
  • Pitch: 0.031" (0.80mm)
  • Feature: Board Guide
  • Connector Type: Plug with Center Strip Contacts
  • Contact Finish: Gold with 8.00µin thickness
  • Mounting Type: Surface Mount
  • Height Above Board: 0.299" (7.60mm)
  • Mated Stacking Heights: 8mm, 12mm, 16mm, and 20mm
