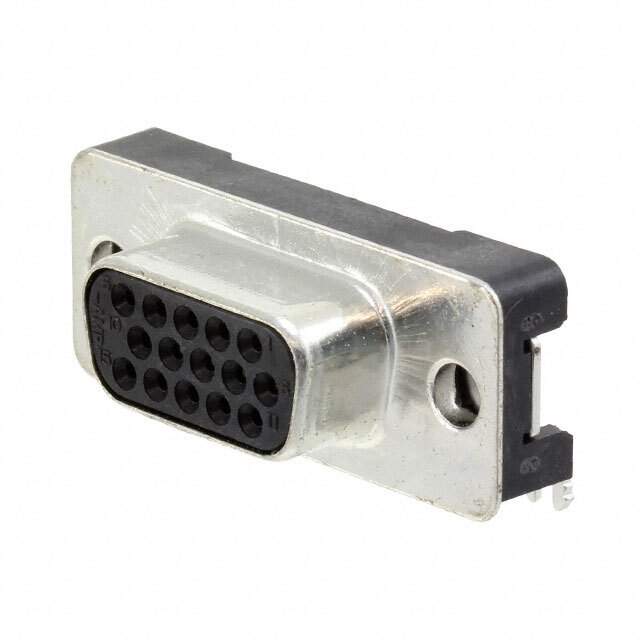

5177802-3 Real Image
Same model may have multiple batches, images only for reference.

5177802-3

Part No 5177802-3
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD RCPT 15P R/A SLDR / 15 Position D-Sub, High Density Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Product Status Obsolete
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 3
Mounting Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Current Rating (Amps) 2A
Features Board Lock
Voltage Rating 125V
Dielectric Material Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5177802
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A113808,5177802-3-ND,-5177802-3-SI
Standard Package 80
Win Source Part Number 1333268-5177802-3
Ultra Librarian 3D Model Ultra Librarian 5177802-3 CAD Model

Description

The 5177802-3 D-sub connector assembly is a receptacle with 15 female sockets and a board lock feature.

  • Type: Receptacle
  • Sockets: 15 female sockets
  • Feature: Board lock
  • Density: High-density D-sub connector
  • Shell Size: 1 (DE, E)
  • Mounting Style: Right-angle
  • Contact Material: Copper alloy
  • Contact Finish: Gold
  • Contact Form: Signal
  • Shell Material: Steel
  • Shell Plating: Tin plating finish
  • Dielectric Material: Thermoplastic
  • Operating Temperature: -55°C to 105°C
