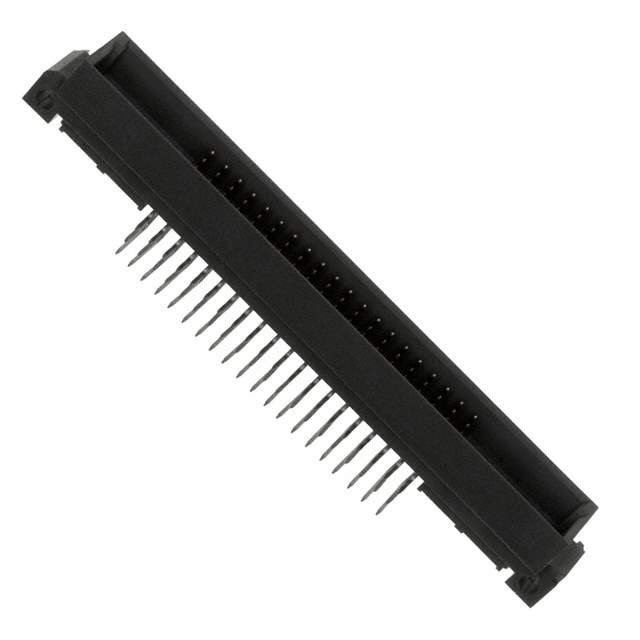

5148412-5 Real Image
Same model may have multiple batches, images only for reference.

5148412-5

Part No 5148412-5
Manufacturer TE Connectivity
Catalog Backplane Connectors
Description CONN DIN PLUG 64POS PCB RA GOLD / 64 (60 + 4 Power) Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr TE Connectivity AMP Connectors
Series Eurocard
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 64 (60 + 4 Power)
Number of Positions Loaded 60
Pitch 0.100" (2.54mm)
Number of Rows 3
Style M
Level, Class 2
Mounting Type Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Material - Insulation Polymer Thermoplastic, Glass Filled
Base Product Number 5148412
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 51484125
Standard Package 30
Win Source Part Number 1039054-5148412-5
Ultra Librarian 3D Model Ultra Librarian 5148412-5 CAD Model

Description

The TE Connectivity electronic component is an ideal component for electronic devices that require a connector.

  • Win Source Part Number: 1039054-5148412-5
  • Series: Eurocard
  • Positions: 64 (60 + 4 Power)
  • Pitch: 0.100" (2.54mm)
  • Connector Type: plug
  • Pins: male
  • Positions Loaded: 60
  • Rows: three
  • Termination: solder
  • Contact Finish: gold
  • Package: bulk
  • Insulation Material: polymer thermoplastic, glass filled
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 30
  • Style: M
  • Level, Class: 2
  • Mounting Type: through hole, right angle
  • Temperature Range: -55°C ~ 125°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Also Known As: 51484125
  • Alternative Parts: 5650933-5, 5650951-5, 5650945-5, 09031646951, 86093487313755ELF, and 86094327313755ELF
