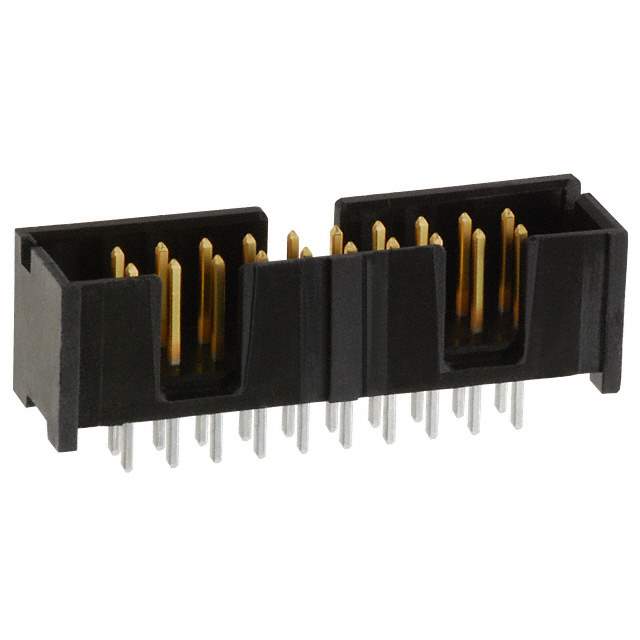

5103308-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 20
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.388" (9.86mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Features Keying Slot
Temperature Range - Operating -65°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1A per Contact
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 054577-5103308-5
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name 5103308
Introduction Date February 16, 2006
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 5103308-5 CAD Model

Description

Description

The 5103308-5 is engineered to provide exceptional performance in a compact package. Ideal for space-saving designs, it supports numerous advanced electronic applications.

Applications

  • Smart home devices
  • Mobile electronics
  • Data acquisition systems
  • Instrumentation equipment

Features and Benefits

  • Compact and lightweight for easy integration.
  • Consistent operation under varying conditions.
  • Energy efficient for battery-operated devices.
  • Easy to install with a user-friendly design.

Additional Details

The 5103308-5 combines state-of-the-art technology with a small form factor, making it perfect for applications where space and performance are both critical.
