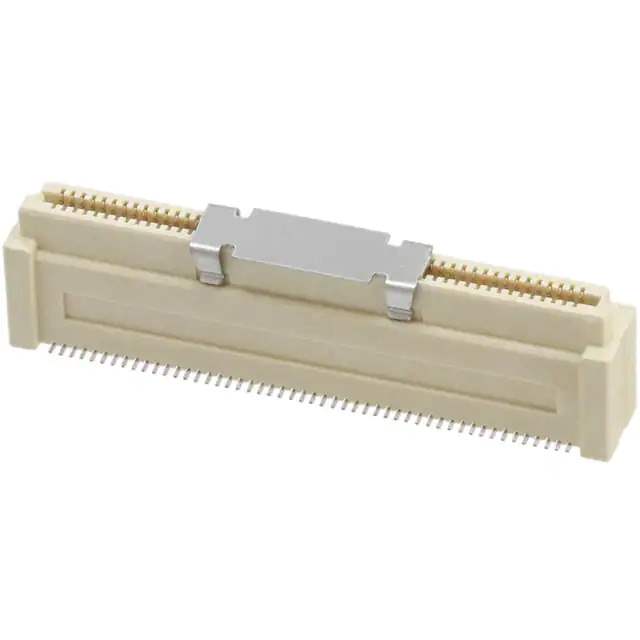

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series Free Height (FH)
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 100
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 13mm, 14mm, 15mm, 16mm
Height Above Board 0.463" (11.75mm)
Base Product Number 5084616
Standard Package 200 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856342-5084616-4
Ultra Librarian 3D Model Ultra Librarian 5084616-4 CAD Model

Description

The 856342-5084616-4 is a rectangular connector array from TE Connectivity.

  • Category: rectangular connectors
  • Series: Free Height (FH)
  • Positions: 100
  • Pitch: 0.031" (0.80mm)
  • Feature: board guide
  • Connector Type: receptacle with outer shroud contacts
  • Rows: 2
  • Contact Finish: gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Package: tape & reel (TR) or cut tape (CT)
  • Standard Package: 200 pieces
  • Mounting: surface mountable
  • Height Above Board: 0.463" (11.75mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Base Product Number: 5084616
  • Status: currently active
