5-747909-2 TE Connectivity
Same model may have multiple batches, images only for reference.

5-747909-2

Part No 5-747909-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies

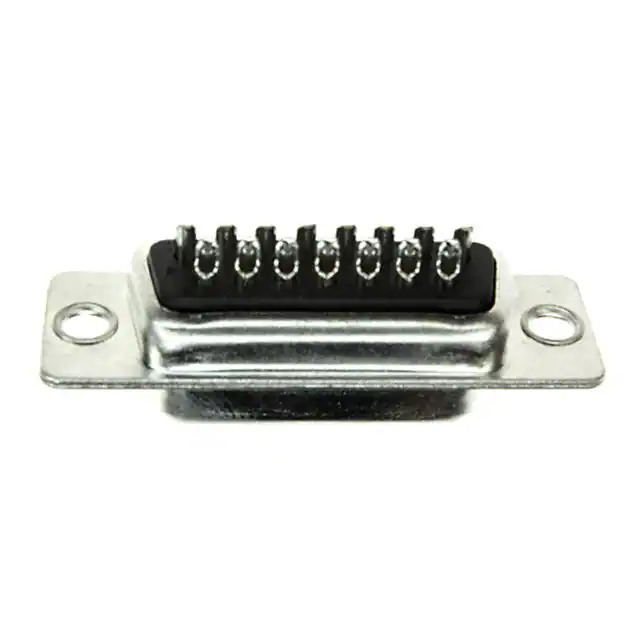

Description CONN D-SUB RCPT 15POS SLDR CUP / 15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing -
Features -
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 747909
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365134-5-747909-2
Ultra Librarian 3D Model Ultra Librarian 5-747909-2 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HD-20 D-Sub Connector Assembly is a reliable and versatile connector solution for your electronic projects.

  • Temperature Range: -55°C to 105°C
  • Positions/Rows: 15 Position, 2 Row
  • Gender: Female Sockets
  • Contact Material: Brass
  • Contact Finish: Gold
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Housing Color: Black
  • Flammability Rating: UL94 V-0
  • Mounting Type: Free Hanging
  • Features: Housing/Shell Flange
  • Dielectric Material: Polybutylene Terephthalate (PBT), Glass-Filled
