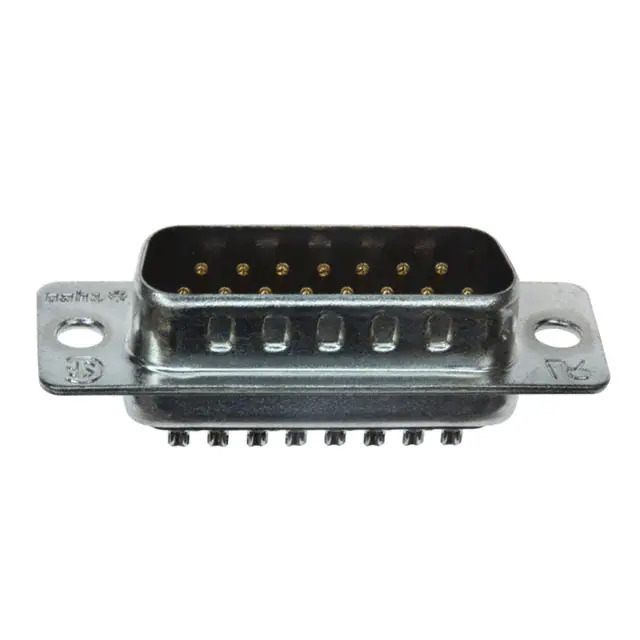

5-747908-2 TE Connectivity
Same model may have multiple batches, images only for reference.

5-747908-2

Part No 5-747908-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 15POS SLDR CUP / 15 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing -
Features Grounding Indents
Voltage Rating 250V
Color Black
Contact Form -
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Wire Gauge -
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 747908
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365125-5-747908-2
Ultra Librarian 3D Model Ultra Librarian 5-747908-2 CAD Model

Description

The 747908-2 D-sub connector assembly is part of the AMPLIMITE HD-20 series manufactured by TE Connectivity AMP Connectors. Bold the product name 747908-2 and manufacturer TE Connectivity AMP Connectors.

  • Series: AMPLIMITE HD-20
  • Connector Type: Plug
  • Gender: Male Pins
  • Positions: 15
  • Rows: 2
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Shell Material: Steel, Tin Plated
  • Operating Temperature: -55°C to 105°C
  • ECCN: EAR99
