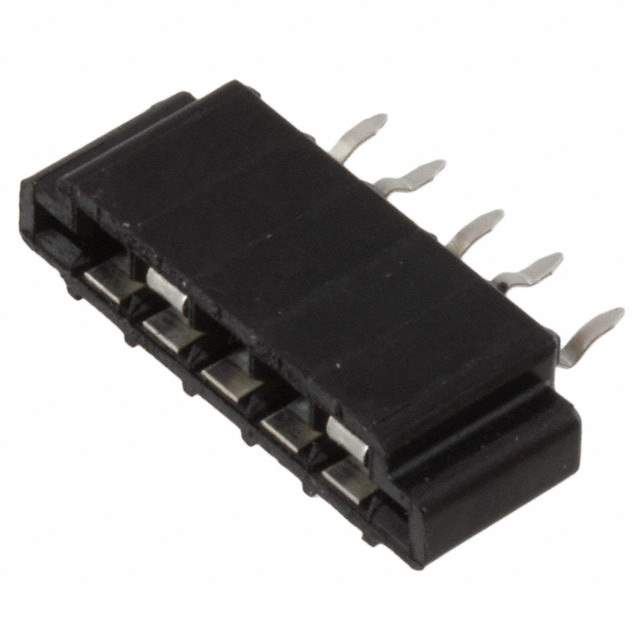

5-520315-5 Real Image
Same model may have multiple batches, images only for reference.

5-520315-5

Part No 5-520315-5
Manufacturer TE Connectivity
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 5POS 2.54MM PCB / 5 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.100" (2.54mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Flat Flex Type FFC, FPC
Mounting Through Hole
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 5
Pitch 0.100" (2.54mm)
Termination Kinked Pin
FFC, FCB Thickness 0.13mm ~ 0.38mm
Height Above Board 0.273" (6.93mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyester Thermoplastic, Glass Filled
Voltage Rating 250V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Black
Mating Cycles 25
Base Product Number 520315
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A105063,55203155,5-520315-5-ND,-5-520315-5-SI
Standard Package 240
Win Source Part Number 1333328-5-520315-5
Ultra Librarian 3D Model Ultra Librarian 5-520315-5 CAD Model

Description

The 5-520315-5 from TE Connectivity AMP Connectors is a flat flexible connector assembly with 5 positions and a pitch of 0.100" (2.54mm).

  • Termination: kinked pin
  • Contact Finish: tin
  • Contact Material: phosphor bronze
  • Voltage Rating: 250V
  • Current Rating: 1A
  • Mounting Style: through-hole
  • Operating Temperature: -55°C to 105°C
  • Flat Flex Type: FFC, FPC
  • Connector/Contact Type: contacts, vertical - 1 sided
  • Height Above Board: 0.273" (6.93mm)
  • Housing Material: black polyester thermoplastic, glass filled
  • RoHS Compliance: yes
  • Standard Package: 240
