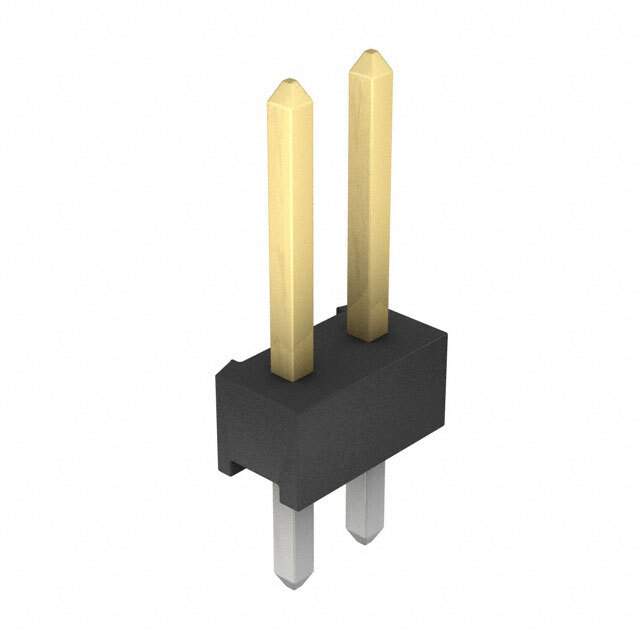

5-146253-1

Name: 5-146253-1
Brand: TE Connectivity
SKU: 1332355
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5-146253-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS / Connector Header Through Hole 2 position
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Number of Positions	2
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.318" (8.08mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.533" (13.55mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	146253
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1,040
Win Source Part Number	1332355-5-146253-1
Ultra Librarian 3D Model	Ultra Librarian 5-146253-1 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1332355-5-146253-1 header connector is a male pin connector with 2 rows and 2 positions.

Type: Breakaway Header
Positions Loaded: All
Fastening Type: Push-Pull
Contact Material: Copper Alloy
Contact Finish-Mating: Gold
Contact Finish-Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Contact Shape: Square
Overall Contact Length: 0.533 inches (13.55mm)
Insulation Height: 0.090 inches (2.29mm)
Row Spacing-Mating: 0.100 inches (2.54mm)
Contact Length-Mating: 0.318 inches (8.08mm)
Contact Length-Post: 0.125 inches (3.18mm)
Current Rating: 3A
HTSUS: 8536.69.4040
