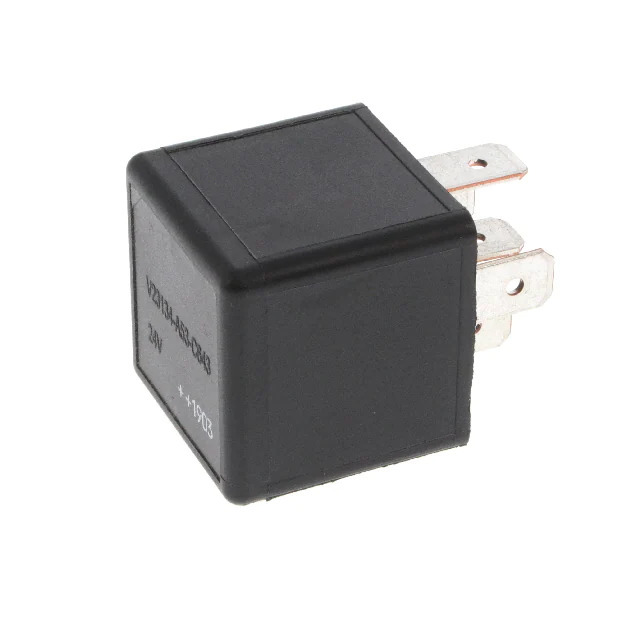

5-1393302-1

Name: 5-1393302-1
Brand: TE Connectivity
SKU: 1373457
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5-1393302-1
Manufacturer	TE Connectivity
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE SPDT 20A 24V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays - Power Relays, Over 2 Amps
Mfr	TE Connectivity AMP Connectors
Series	-
Package	Bulk
Product Status	Active
Mounting Type	Socketable
Coil Voltage	24VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	20 A
Switching Voltage	28VDC - Nom
Coil Current	74.1 mA
Coil Type	Non Latching
Features	-
Termination Style	Plug In, Quick Connect - 0.110" (2.8mm)
Seal Rating	-
Coil Insulation	-
Must Operate Voltage	14.4 VDC
Must Release Voltage	3.2 VDC
Operate Time	7 ms
Release Time	2 ms
Temperature Range - Operating	-40°C ~ 125°C
Contact Material	Silver Alloy
Relay Type	General Purpose
Coil Resistance	324 Ohms
Base Product Number	1393302
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.41.0050
Win Source Part Number	1373457-5-1393302-1
Ultra Librarian 3D Model	Ultra Librarian 5-1393302-1 CAD Model

Description

The TE Connectivity AMP Connectors 1373457-5-1393302-1 is a power relay with a current rating of 20A and a switching voltage of 28VDC.

Current Rating: 20A
Switching Voltage: 28VDC
Coil Voltage: 24VDC
Contact Form: SPDT (1 Form C)
Contact Material: Silver Alloy
Termination Style: Plug-in, quick connect - 0.110" (2.8mm)
Relay Type: General Purpose
Coil Resistance: 324 Ohms
Operate Time: 7ms
Release Time: 2ms
