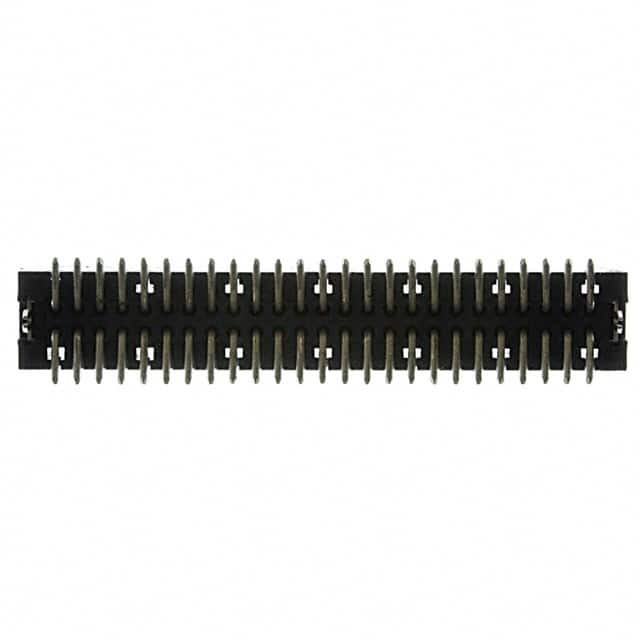

Same model may have multiple batches, images only for reference.
5-104655-6
Same model may have multiple batches, images only for reference.

5-104655-6

Part No 5-104655-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 50POS 1.27MM / Connector Header Surface Mount 50 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU 50/50 Grid
Package Tube
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 50
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.226" (5.74mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Lock
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 0.5A per Contact
Mated Stacking Heights 6.35mm
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications Automotive, General Purpose, Medical, Military, Telecommunications
Base Product Number 104655
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856354-5-104655-6
Ultra Librarian 3D Model Ultra Librarian 5-104655-6 CAD Model

Description

The 856354-5-104655-6 is a male pin header connector designed for various electronic applications.

  • Positions: 50
  • Pitch: 0.050" (1.27mm)
  • Fastening Type: Push-Pull
  • Package Type: Tube
  • Pieces per Package: 15
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Applications: Automotive, General Purpose, Medical, Military, and Telecommunications
  • Temperature Range: -65°C to 105°C
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Features: Board Locks
