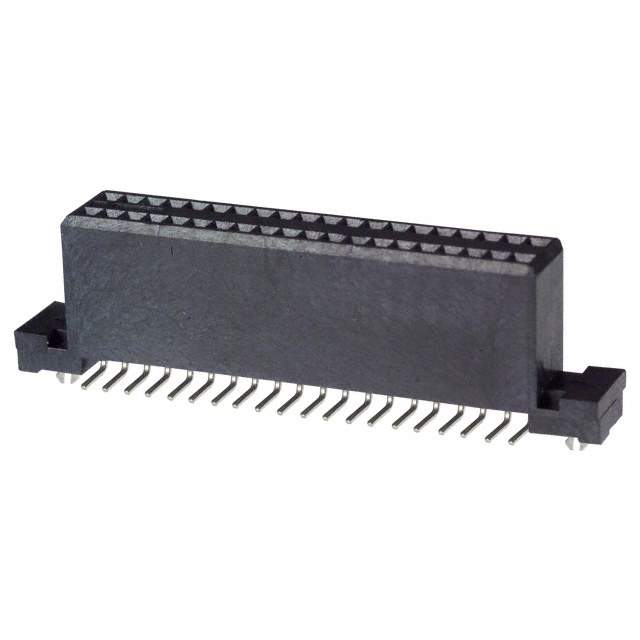

Same model may have multiple batches, images only for reference.

5-104550-5

Name: 5-104550-5
Brand: TE Connectivity
SKU: 1332026
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	5-104550-5
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 40POS 0.05 GOLD SMD / 40 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	40
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.370" (9.40mm)
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	11.94mm, 13.08mm
Features	Board Lock
Voltage Rating	30VAC
Insulation Material	Polyphthalamide (PPA)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	150.0µin (3.81µm)
Base Product Number	104550
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	A31880,2266-5-104550-5,-5-104550-5-CSI,51045505,Q7785223
Standard Package	16
Win Source Part Number	1332026-5-104550-5
Ultra Librarian 3D Model	Ultra Librarian 5-104550-5 CAD Model

Description

This is a rectangular connector manufactured by TE Connectivity AMP Connectors.

Win Source Part Number: 1332026-5-104550-5
Packaging: Tube
Positions: 40
Features: Board Lock
Connector Type: Receptacle
Contact Gender: Female Socket
Contact Finish: Gold
Mating Pitch: 0.050" (1.27mm)
Mounting Type: Surface Mount
Temperature Range: -65°C to 105°C
