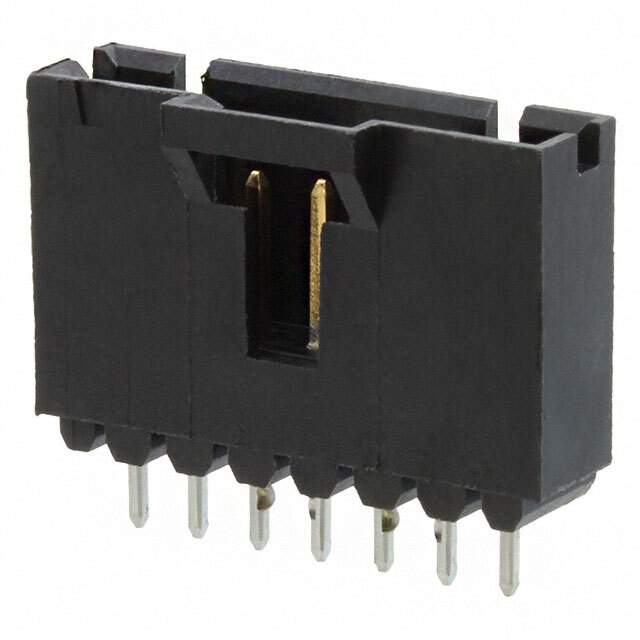

Same model may have multiple batches, images only for reference.

5-104362-6

Name: 5-104362-6
Brand: TE Connectivity
SKU: 1038657
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	5-104362-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 7POS 2.54MM / Connector Header Through Hole 7 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU MTE
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.550" (13.97mm)
Insulation Height	0.535" (13.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Thermoplastic
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	267V
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	104362
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	-5-104362-6-SI,A33972,-5-104362-6-CSI
Standard Package	1,872
Win Source Part Number	1038657-5-104362-6
Ultra Librarian 3D Model	Ultra Librarian 5-104362-6 CAD Model

Alternative Products

Description

The TE Connectivity AMPMODU MTE 104362-6 is a 7-position male pin header connector with a 0.100" (2.54mm) pitch.

Positions: 7
Pitch: 0.100" (2.54mm)
Voltage Rating: 267V
Current Rating: 3A
Design: Shrouded 4-wall
Feature: Keying Slot
Packaging: Tube
Contact Finish Thickness (Mating): 15.0µin (0.38µm)
Contact Finish Thickness (Post): 100.0µin (2.54µm)
Applications: Automotive, medical, telecommunications, and general-purpose industries
