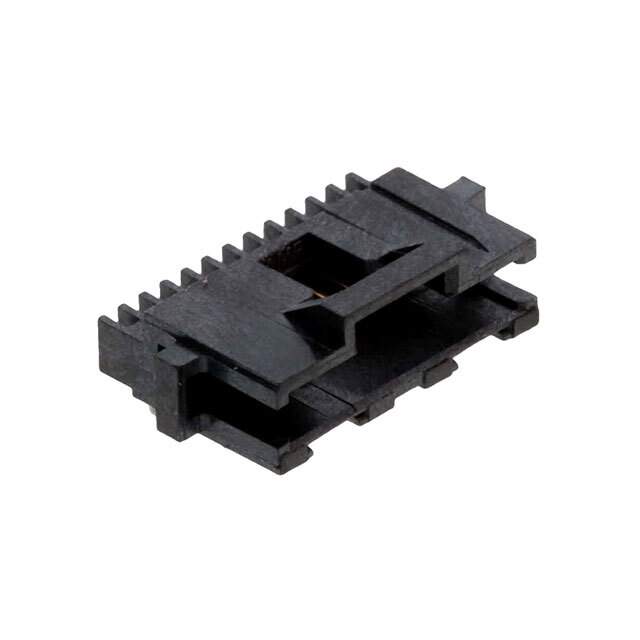

The TE Connectivity AMP Connectors 811541-5-104074-1 is a header connector with male pins.

• Mounting Style: through hole, right-angle
• Board Guide: with
• Rows: one
• Positions Loaded: all
• Termination: solder
• Voltage Rating: 30VAC
• Flammability Rating: UL94 V-0
• Applications: automotive, general purpose, medical, telecommunications
• Insulation Material: thermoplastic
• Style: board-to-board or cable
• Pitch-Mating: 0.050” (1.27mm)
• Contact Finish-Mating: gold (30.0μin (0.76μm))
• Contact Finish-Post: tin (150.0μin (3.81μm))
• Shrouded: 2 walls
• Contact Length-Post: 0.100” (2.54mm)
• Contact Length-Mating: 0.125” (3.18mm)
• Insulation Height: 0.190” (4.83mm)
• Insulation Color: black
• Temperature Range: -65°C ~ 105°C
• MSL Level: 1
