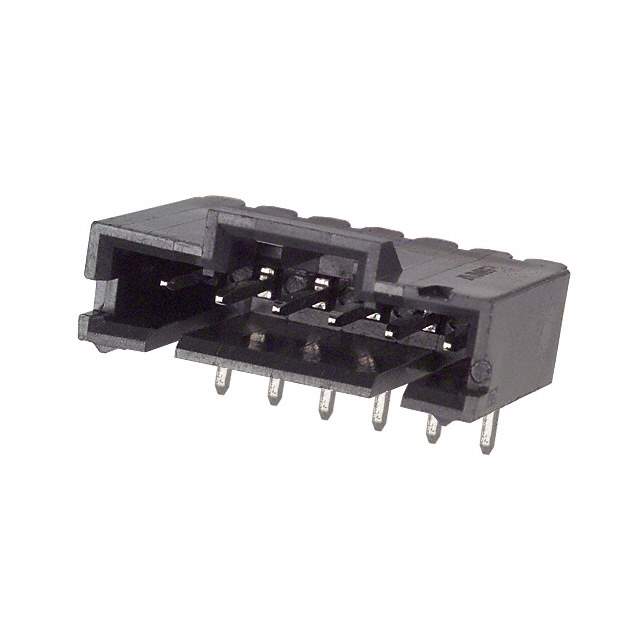

Same model may have multiple batches, images only for reference.

5-103634-5

Name: 5-103634-5
Brand: TE Connectivity
SKU: 1334579
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5-103634-5
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 6POS 2.54MM / Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	TE Connectivity AMP Connectors
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.200" (5.08mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Thermoplastic
Features	Keying Slot
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	103634
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	A33868,51036345,-5-103634-5-CSI
Standard Package	30
Win Source Part Number	1334579-5-103634-5
Ultra Librarian 3D Model	Ultra Librarian 5-103634-5 CAD Model

Alternative Products

Description

TE Connectivity AMP Connectors 1334579-5-103634-5 header is a 6-position male pin connector with a keying slot.

Positions: 6
Pin Gender: Male
Keying Slot: Yes
Mounting Style: Through-Hole, Right-Angle
Termination: Solder
Contact Material: Brass
Contact Finish: Tin
UL94 Rating: UL94 V-0
Temperature Range: -65°C to 105°C
Applications: Automotive, General Purpose, Medical, Telecommunications
Shrouding: Shrouded with 4 Walls
Pitch Mating: 0.100" (2.54mm)
Contact Length Mating: 0.230" (5.84mm)
Contact Length Post: 0.130" (3.30mm)
Insulation Height: 0.200" (5.08mm)
Insulation Material: Thermoplastic
Application Style: Board to Board or Cable
Fastening Type: Latch Holder
