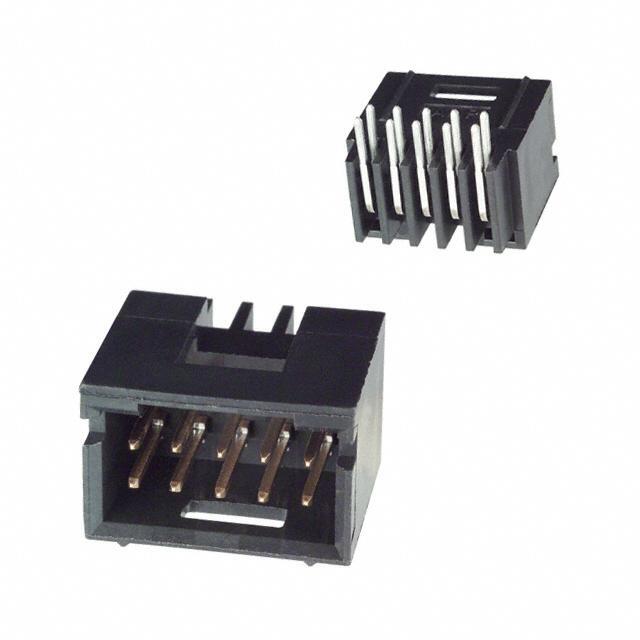

5-103166-3 TE Connectivity
Same model may have multiple batches, images only for reference.

5-103166-3

Part No 5-103166-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A .100 10POS 30AU
Datasheet
5-103166-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPMODU Mod II
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.318" (8.08mm)
Contact Length - Post 0.135" (3.43mm)
Insulation Height 0.400" (10.16mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Operating Temperature Range -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 763882-5-103166-3
Popularity Medium
Supply and Demand Status Balance
Family Name 103166
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 5-103166-3 CAD Model

Description

The TE Connectivity AMP Connectors 763882-5-103166-3 is a male pin header connector with a detent lock fastening type. The manufacturer of this product is TE Connectivity AMP Connectors.

  • Fastening Type: Detent lock
  • Supply and Demand Status: Balanced
  • Applications: Automotive, data communications, industrial control systems
  • Voltage Rating: -
  • Current Rating: 3A
  • Contact Material: Phosphor bronze
  • Contact Finish - Mating: Gold
  • Contact Finish - Post: Tin
