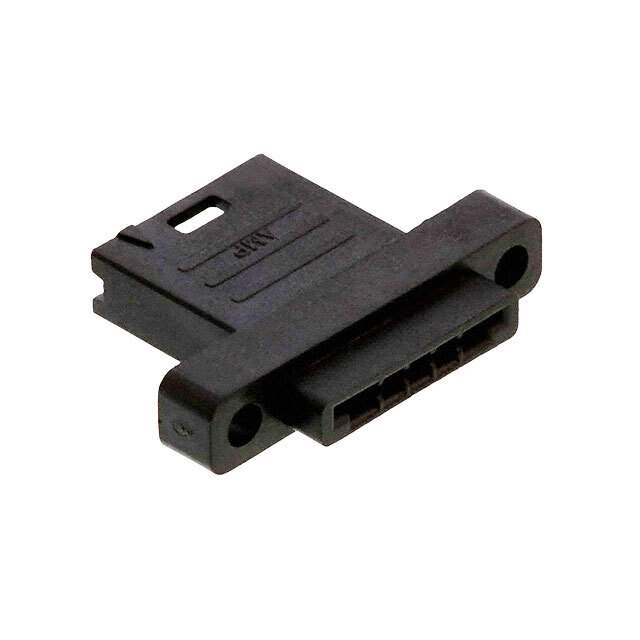

Same model may have multiple batches, images only for reference.

494073-1

Name: 494073-1
Brand: TE Connectivity
SKU: 1380843
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	494073-1
Manufacturer	TE Connectivity
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	5 POS FFC PIN HSG W/MTG EA / Housing FFC Housing for Male Contacts Connector 5Pos 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Housings
Mfr	TE Connectivity
Series	-
Package	Bulk
Flat Flex Type	FFC
Connector Type	Housing for Male Contacts
Number of Positions	5
Number of Rows	1
Pitch	0.100" (2.54mm)
FFC, FCB Thickness	-
Locking Feature	-
Housing Material	Thermoplastic
Features	Flange
Temperature Range - Operating	-
Material Flammability Rating	-
Housing Color	Black
Note	Contacts Not Included
Wire Gauge	22-32 AWG
Insulation Diameter	0.025" ~ 0.056" (0.64mm ~ 1.42mm)
Base Product Number	494073
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8538.90.6000
Standard Package	1 pcs
Win Source Part Number	1380843-494073-1
Ultra Librarian 3D Model	Ultra Librarian 494073-1 CAD Model

Description

The 494073 FFC, FPC Connector Housing is a high-quality component used in flat flexible cable applications.

For Use With/Related Products: Male Contacts
Pitch: 0.100" (2.54mm)
Flange Feature: Yes
Wire Gauge: 22-32 AWG
Insulation Diameter: 0.025" ~ 0.056" (0.64mm ~ 1.42mm)
Material: Thermoplastic
Color: Black
Packaging: Bulk
Contacts Included: No
