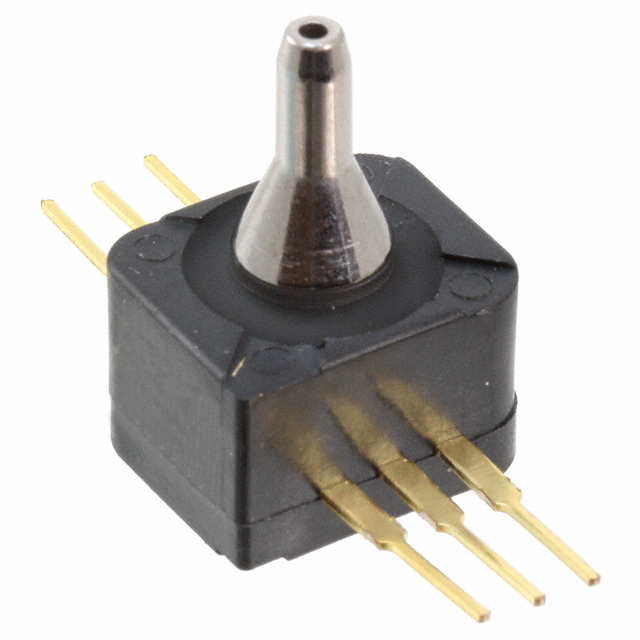

Same model may have multiple batches, images only for reference.
4515DO-DS3BK020DPL TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

4515DO-DS3BK020DPL

Part No 4515DO-DS3BK020DPL
Manufacturer TE Connectivity
Catalog Pressure Sensors, Transducers
Description SENSOR 0.72PSID 0.14\
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Applications Board Mount
Pressure Type Differential
Operating Pressure 0.72PSI (4.98kPa)
Output Type I2C
Output 14 b
Accuracy ±0.25%
Voltage - Supply 3.3V
Port Size Male - 0.14" (3.56mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 20PSI (137.9kPa)
Temperature Range - Operating -10°C ~ 85°C
Mounting Type Through Hole
Case / Package 8-DIP Module
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1600072-4515DO-DS3BK020DPL
Ultra Librarian 3D Model Ultra Librarian 4515DO-DS3BK020DPL CAD Model
