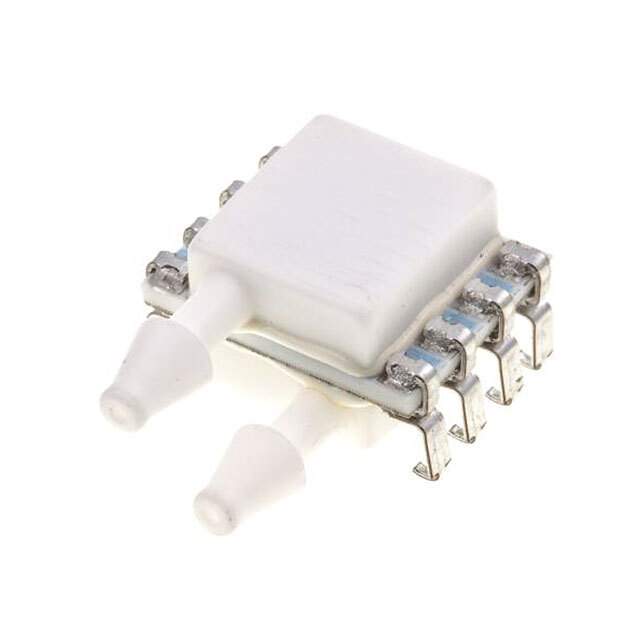

The 4515DO-DS3BK004DP is a pressure sensor from TE Connectivity's 4515 series. It is a small, low-pressure MEMS sensor designed for various applications requiring accurate pressure measurement. This particular model is a differential pressure sensor with a digital output, offering precise and reliable performance.

Applications

• Medical devices (e.g., ventilators, respirators)
• HVAC systems (e.g., differential pressure monitoring)
• Industrial process control
• Portable pressure calibrators
• Pneumatic controls

Features

• Digital output (I2C)
• Differential pressure sensing
• Small form factor
• Low power consumption
• Calibrated and temperature compensated

Benefits

• High accuracy: Provides precise pressure measurements for critical applications.
• Easy integration: Digital output simplifies interfacing with microcontrollers and other digital systems.
• Space-saving design: Small size allows for integration into compact devices.
• Extended battery life: Low power consumption makes it suitable for battery-powered applications.
• Reliable performance: Calibration and temperature compensation ensure accurate readings over a wide range of operating conditions.

Additional Details

The 4515DO-DS3BK004DP utilizes MEMS (Micro-Electro-Mechanical Systems) technology to provide a highly accurate and reliable pressure measurement. The sensor is calibrated and temperature compensated, meaning that its output is corrected for variations in temperature, ensuring accurate readings even in changing environments. The digital I2C output allows for easy integration with microcontrollers and other digital systems. The sensor is designed to measure differential pressure, which is the difference between two pressures. This is useful in applications such as measuring airflow or monitoring pressure drops across filters. The sensor operates on a supply voltage typically around 3.3V or 5V and consumes very little power, making it ideal for battery-powered devices. The small size of the sensor allows it to be integrated into compact devices without taking up too much space. Detailed specifications such as the exact pressure range, accuracy, and temperature compensation range can be found in the product datasheet provided by TE Connectivity.
