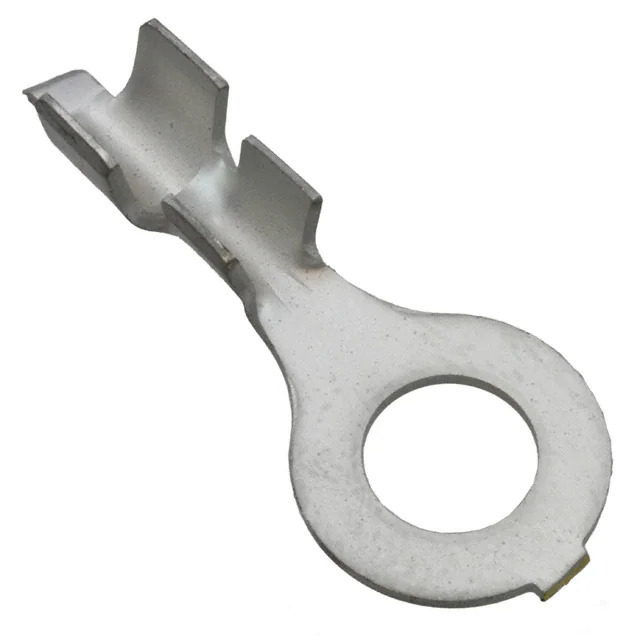

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Circular
Stud/Tab Size -
Thickness 0.030" (0.76mm)
Width - Outer Edges 0.470" (11.94mm)
Length - Overall 1.046" (26.57mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Non-Insulated
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.120" ~ 0.180" (3.05mm ~ 4.57mm)
Material - Insulation -
Base Product Number 42751
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364974-42751-2
Ultra Librarian 3D Model Ultra Librarian 42751-2 CAD Model

Description

The TE Connectivity AMP Connectors offers a wide range of reliable ring connectors for various electrical applications.

  • Product Number: 1364974-42751-2
  • Terminal Shape: Circular
  • Wire Gauge: 14-16 AWG
  • Contact Material: Brass
  • Contact Finish: Tin
  • Overall Length: 1.046" (26.57mm)
  • Insulation Diameter: 0.120" ~ 0.180" (3.05mm ~ 4.57mm)
  • Insulation: Non-Insulated
  • Termination: Crimp
