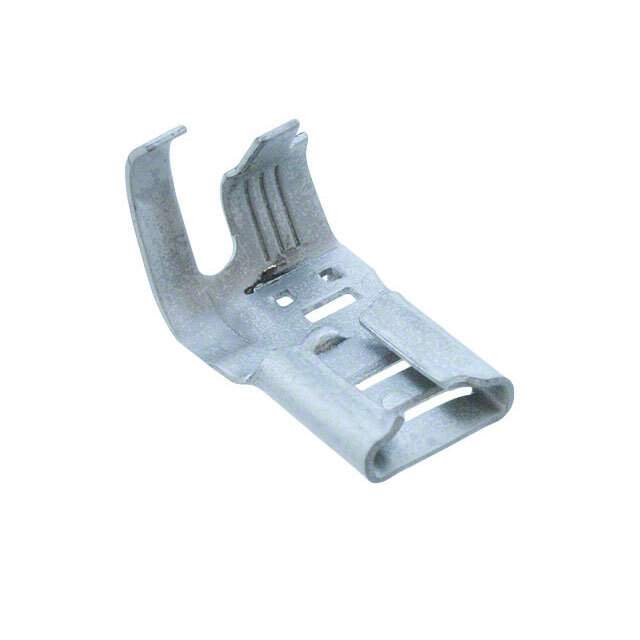

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Termination Crimp
Wire Gauge 12-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.210" (2.79mm ~ 5.33mm)
Base Product Number 42742
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27637-ND,-42742-2-SI,A27637,42742-2-ND,A27637CT,A27637TR,427422
Standard Package 4,000
Win Source Part Number 1333548-42742-2
Ultra Librarian 3D Model Ultra Librarian 42742-2 CAD Model

Description

The 1333548-42742-2 is a female quick connect, quick disconnect connector from TE Connectivity AMP Connectors.

  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 12-18 AWG
  • Contact Material: Brass
  • Insulation: Non-Insulated
  • Tab Width: 0.250 inches
  • Tab Thickness: 0.032 inches
  • Tab Length: 0.305 inches
  • Insulation Diameter: 0.110 to 0.210 inches
