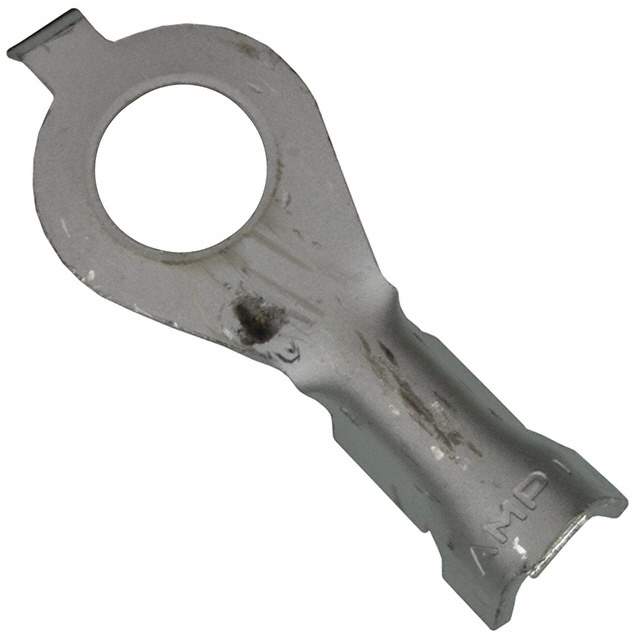

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.029" (0.74mm)
Width - Outer Edges 0.342" (8.69mm)
Length - Overall 0.784" (19.91mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.100" ~ 0.140" (2.54mm ~ 3.56mm)
Base Product Number 4072
Standard Package 11,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1333685-40725
Ultra Librarian 3D Model Ultra Librarian 40725 CAD Model

Description

The TE Connectivity electronic component with the part number 1333685-40725 is a ring connector terminal.

  • Wire Gauge: 14-18 AWG
  • Termination: Crimp
  • Contact Finish: Tin
  • Contact Material: Brass
  • Insulation: Non-Insulated
  • Insulation Diameter Range: 0.100" to 0.140" (2.54mm to 3.56mm)
  • Terminal Type: Circular
  • Stud Size: 10
  • Mounting: Free Hanging (In-Line)
  • Thickness: 0.029" (0.74mm)
  • Overall Length: 0.784" (19.91mm)
  • Width: 0.342" (8.69mm)
  • REACH Regulation: Unaffected
  • Manufacturer: TE Connectivity
  • Base Product Number: 4072
  • Status: Active
  • Packaging: Tape and Reel or Cut Tape
