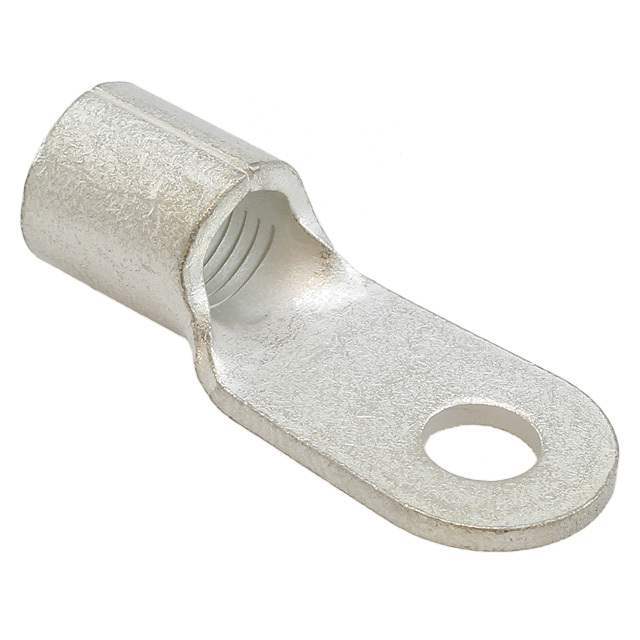

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1308736-130552
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects>Terminals>Ring Connectors
Packaging Bulk
Part Status Active
Terminal Type Circular
Stud/Tab Size M5 Stud
Thickness 0.057" (1.45mm)
Width - Outer Edges 0.469" (11.91mm)
Length - Overall 1.169" (29.70mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Ultra Librarian 3D Model Ultra Librarian 130552 CAD Model

Description

TE Internal #: 130552 Closed Ring Tongue Terminal, 6 AWG, M5 Stud Size, 5.2 mm [.205 in] Stud Diameter, Closed Barrel, Straight, Tin, Uninsulated
