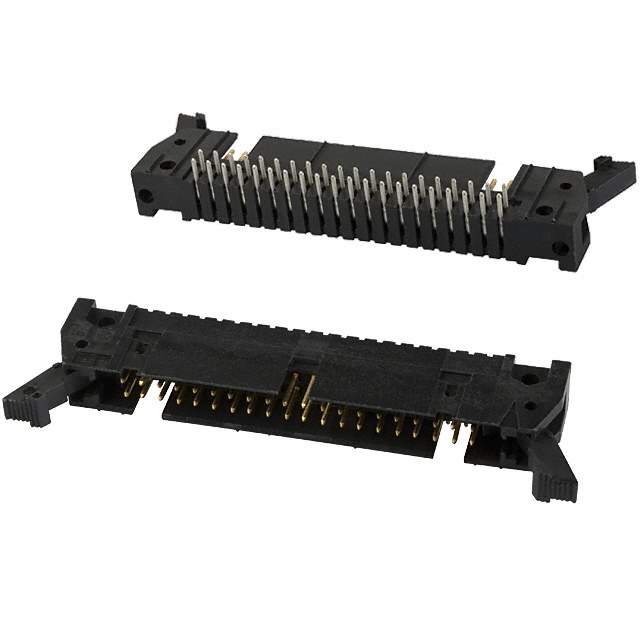

5499913-9 Real Image
Same model may have multiple batches, images only for reference.

5499913-9

Part No 5499913-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 2.54MM / Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMP-Latch
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.110" (2.79mm)
Insulation Height 0.315" (8.00mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Features Keying Slot, Mounting Flange
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 250VAC
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 5499913
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names AHB40H,-5499913-9-SI,54999139
Standard Package 32
Win Source Part Number 1167101-5499913-9
Ultra Librarian 3D Model Ultra Librarian 5499913-9 CAD Model

Description

The TE Connectivity AMP Connectors 5499913-9 is a male pin header connector that has 40 positions and two rows. The TE Connectivity AMP Connectors 5499913-9 has a contact type of male pin and has a voltage rating of 250VAC.

  • Positions: 40
  • Rows: 2
  • Contact Type: Male Pin
  • Voltage Rating: 250VAC
  • Current Rating: 1A per contact
  • Temperature Range: -65°C to 105°C
  • Design: Shrouded 4-Wall
