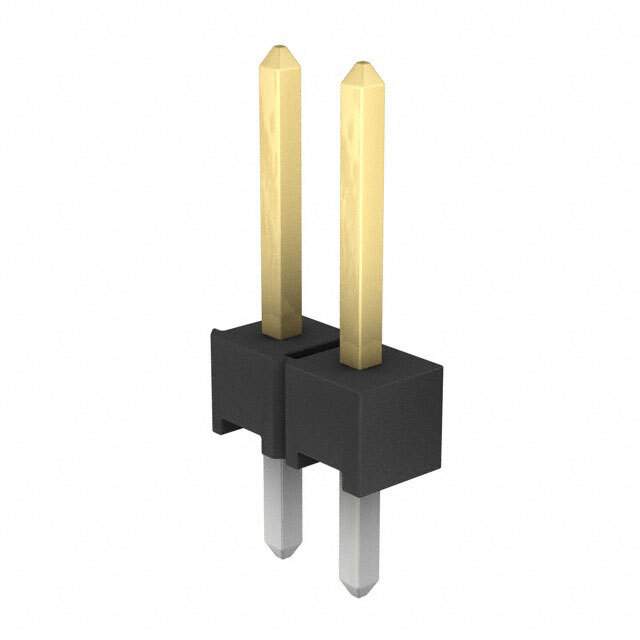

Same model may have multiple batches, images only for reference.

4-102972-0-02

Name: 4-102972-0-02
Brand: TE Connectivity
SKU: 1338166
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	4-102972-0-02
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU Mod II
Package	Bulk
Product Status	Obsolete
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.318" (8.08mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.533" (13.55mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	102972
Standard Package	1
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338166-4-102972-0-02
Ultra Librarian 3D Model	Ultra Librarian 4-102972-0-02 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1338166-4-102972-0-02 is a header, breakaway connector with a pitch of 0.100" (2.54mm) and a contact finish-mating of gold.

Pitch: 0.100" (2.54mm)
Contact Finish-Mating: Gold
Current Rating: 3A
Applications: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Temperature Range: -65°C ~ 105°C
Status: Obsolete
