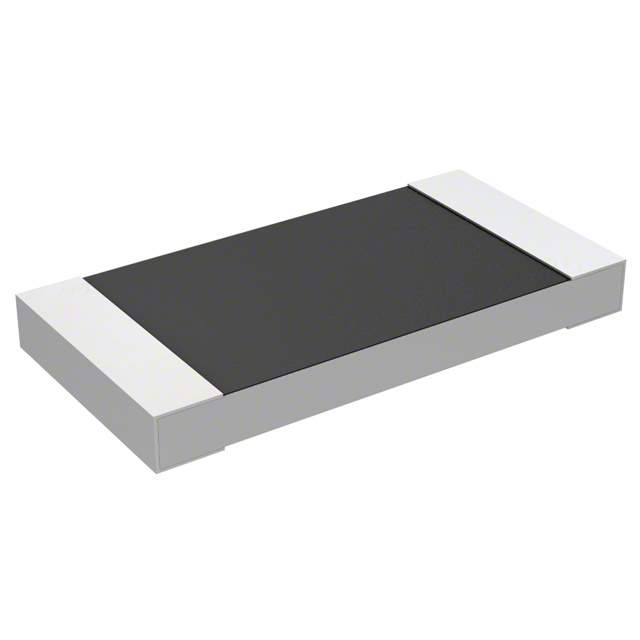

3521470RFT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 18 Weeks
Features 470 Ohms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
Manufacturer TE Connectivity
Series 3521, CGS
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package 2512 (6432 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number A116024CT, A116024DKR, A116024TR, 4-2176070-1
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906652-3521470RFT
Ultra Librarian 3D Model Ultra Librarian 3521470RFT CAD Model

Description

TE Connectivity 3521, CGS series chip resistor is a thick film resistor with 470 Ohms ±1% tolerance and 2W power rating.

  • Resistance: 470 Ohms
  • Tolerance: ±1%
  • Power Rating: 2W
  • Package: 2512 (6432 Metric)
  • Application: Automotive
  • Operating Temperature: -55°C to 155°C
  • Packaging: Reel - TR
  • Quantity per Package: 4000 resistors
  • Supply and Demand Status: balance
  • Estimated Production Lead Time: 18 weeks
  • REACH: unaffected by REACH
  • ECCN: EAR99
