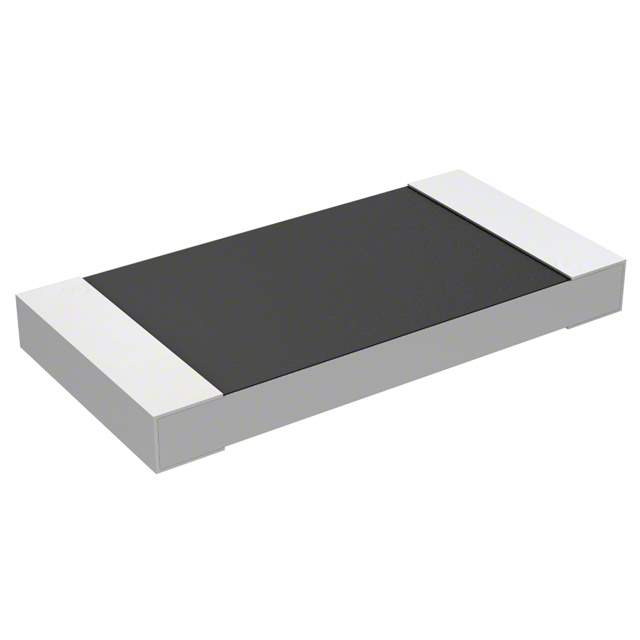

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 18 Weeks
Features 240 Ohms ±1% 2W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
Manufacturer TE Connectivity
Series 3521, CGS
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package 2512 (6432 Metric)
Family Name 3521
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 3-2176070-4, A116017TR, A116017DKR, A116017CT
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 906651-3521240RFT
Ultra Librarian 3D Model Ultra Librarian 3521240RFT CAD Model

Description

TE Connectivity's 3521, CGS series is a 240 Ohms ±1% 2W chip resistor 2512 (6432 Metric) automotive AEC-Q200 thick film.

  • Resistance: 240 Ohms
  • Tolerance: ±1%
  • Power: 2W
  • Package: 2512 (6432 Metric) reel - TR
  • Application: automotive AEC-Q200 thick film
  • Supply and Demand Status: balanced
  • Quantity per Package: 4000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 18 weeks
  • REACH: unaffected
  • ECCN: EAR99
  • HTSUS: 8533.21.0030
  • Other Part Numbers: 3-2176070-4, A116017TR, A116017DKR, A116017CT
