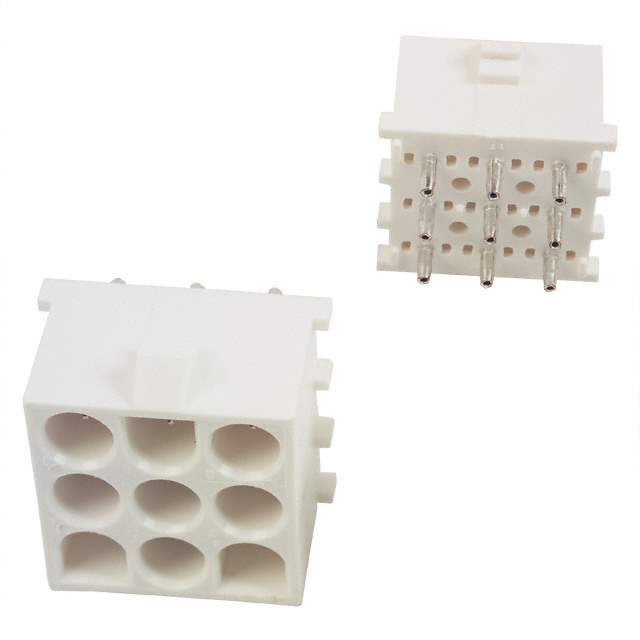

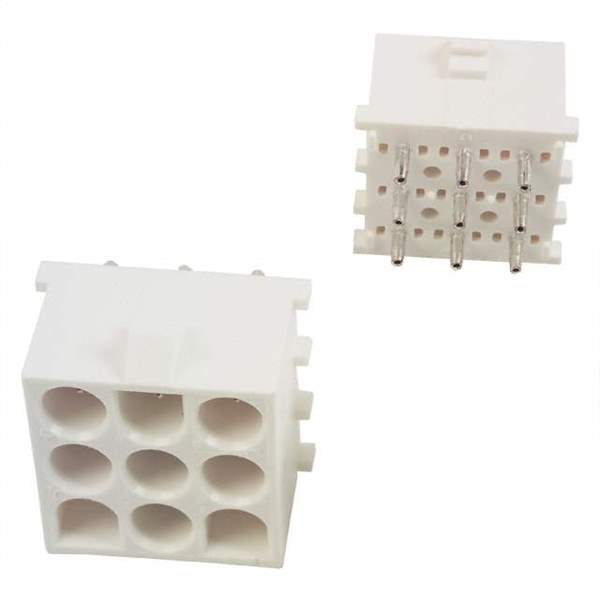

350712-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 9
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications General Purpose
Base Product Number 350712
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -350712-1-SI,-407759976-SI-ND,2266-350712-1,A14324,-407759976-SI,3507121,-407759976-LSI
Standard Package 100
Win Source Part Number 1334235-350712-1
Ultra Librarian 3D Model Ultra Librarian 350712-1 CAD Model

Description

The TE Connectivity AMP Connectors Header is a male pin connector used in a variety of applications.

  • Position Number: 9
  • Connection Style: board to cable/wire
  • Pitch Mating: 0.250" (6.35mm)
  • Row Spacing Mating: 0.250" (6.35mm)
  • Shrouded: 4 wall
  • Contact Shape: circular
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: undefined
  • RoHS: compliant
  • Current Rating: unspecified
  • Packaging: bulk
  • Standard Package: 100
