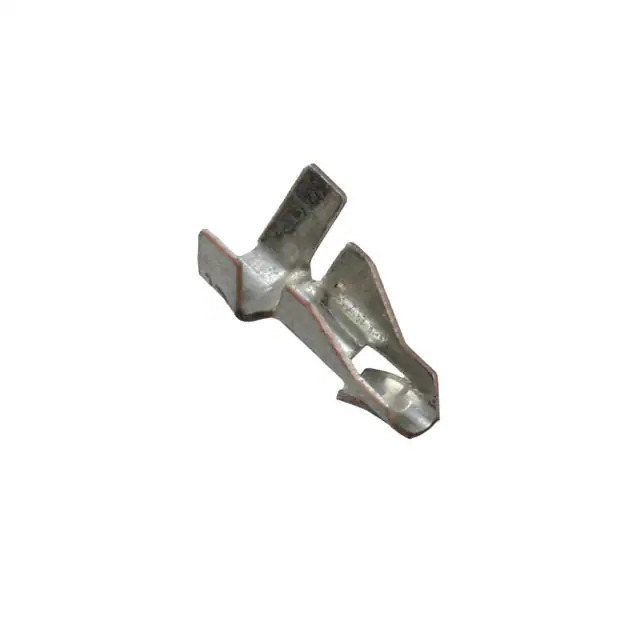

350566-3 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Wire to Board Connectors
Mfr TE Connectivity AMP Connectors
Series Mini Amp-In
Package Tape & Reel (TR)
Product Status Active
Terminal Type Through Board, Locking
Hole Diameter 0.072" ~ 0.077" (1.83mm ~ 1.96mm)
Insulation Diameter 0.060" ~ 0.110" (1.52mm ~ 2.79mm)
Length - Overall 0.250" (6.35mm)
Wire Gauge 18-22 AWG
Contact Material Brass
Contact Finish Tin
Base Product Number 350566
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362782-350566-3
Ultra Librarian 3D Model Ultra Librarian 350566-3 CAD Model

Description

The Mini Amp-In 350566 is a wire to board connector terminal manufactured by TE Connectivity AMP Connectors.

  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Overall Length: 0.250 inches (6.35mm)
  • Terminal Type: Locking
  • Mounting: Through Board
  • Status: Active
  • Base Product Number: 350566
  • HTSUS Code: 8536.90.4000
  • Regulation: REACH Compliant
  • ECCN: EAR99
