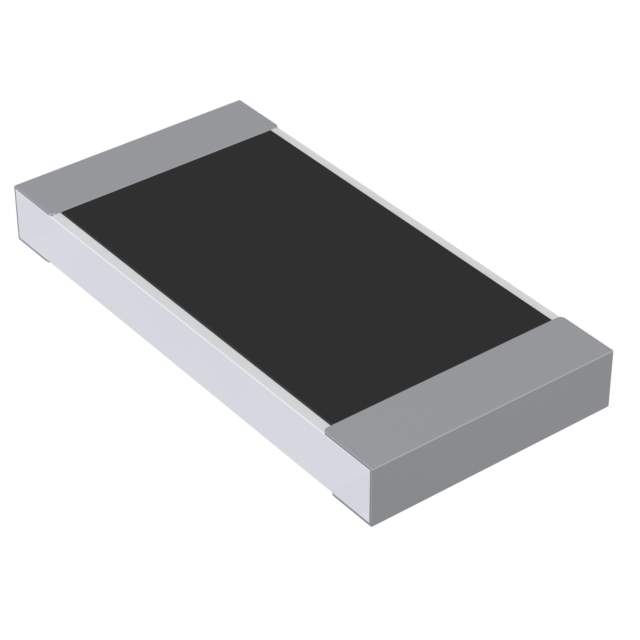

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series 3502, CGS
Package Tape & Reel
Resistance 3 kOhms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Size / Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Number of Terminations 2
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1349720-35023K0FT
Ultra Librarian 3D Model Ultra Librarian 35023K0FT CAD Model

Description

The TE Connectivity Passive Product 35023K0FT is a 2W thick film chip resistor.

  • Manufacturer: TE Connectivity Passive Product
  • Series: 3502, CGS
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power (Watts): 2W
  • Resistance: 3 kOhms
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR)
  • Operating Temperature: -55°C to 155°C
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • HTSUS: 8533.21.0030
  • Package / Case: 2010 (5025 Metric)
  • Supplier Device Package: 2010
