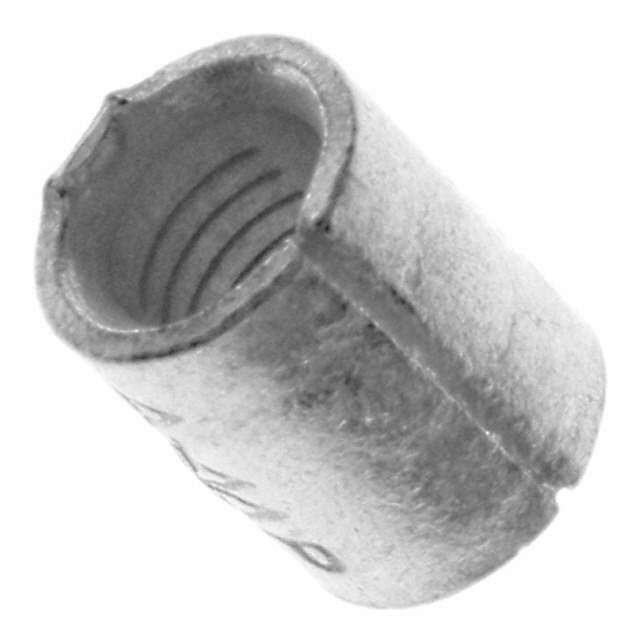

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Wire Splice Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Inline, Individual Openings (Parallel)
Number of Wire Entries 2
Termination Crimp
Wire Gauge 8 AWG
Insulation Non-Insulated
Features Brazed Seam, Serrated Mating Area
Base Product Number 3431
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 34318-ND,2266-34318,-34318-SI,A27196,-34318-LSI
Standard Package 500
Win Source Part Number 1333731-34318
Ultra Librarian 3D Model Ultra Librarian 34318 CAD Model

Description

TE Connectivity AMP Connectors presents a 500 bulk terminal connector with an inline, individual opening (parallel) terminal type.

  • Wire Gauge: 8 AWG
  • Termination: crimp
  • Insulation: Non-insulated
  • Mating Area Feature: Serrated
  • Seam: Brazed
  • Temperature Range: -65°C to 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • ROHS3 compliant: Yes
