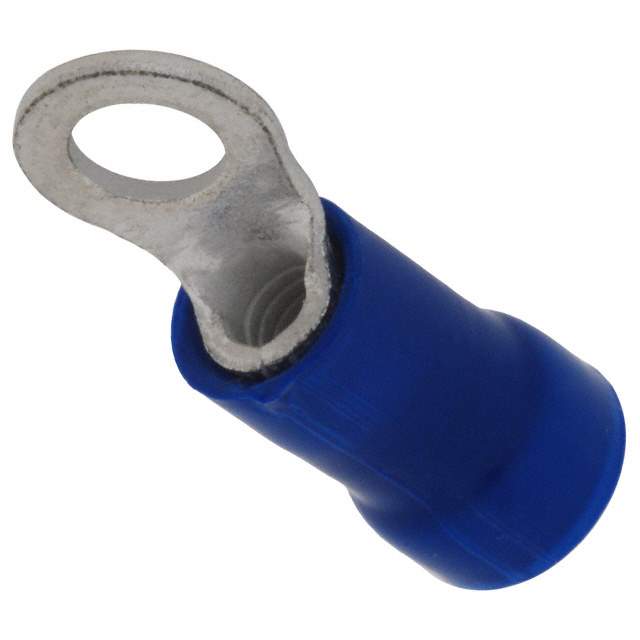

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Body Material Copper
Body Plating Tin
Color Blue
Contact Material Copper
Contact Plating Tin
Depth 6.35 mm
Gender Female
Government Qualified No
Heavy Duty No
Insulated Wire Support Yes
Insulation Insulated
Insulation Diameter 4.9022 mm
Insulation Material Vinyl
Lead Free Lead Free
Length 18.16 mm
Material Copper
Material Thickness 787.4 µm
Max Operating Temperature 90 °C
Min Operating Temperature -25 °C
Mount Free Hanging
Number of Holes 1
Orientation Straight
Packaging Bulk
Plating Tin
Plating Thickness 2.54 µm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Sealable No
Stud Diameter 3.68 mm
Stud Size M3.5
Termination Crimp
Thickness 787.4 µm
Thread Size M3.5
Tongue Thickness 790 µm
Voltage Rating (AC) 600 V
Wire/Cable Diameter 4.9 mm
Wire/Cable Gauge 14 AWG
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 14 AWG
Win Source Part Number 1181774-34158
Categories Terminals
Manufacturer TE Connectivity
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 34158 CAD Model

Description

This TE Connectivity female crimp terminal is a high-quality electronic component designed for use in various applications.

  • Length: 18.16 mm
  • Orientation: straight
  • Material: copper
  • Insulation: vinyl
  • Plating: tin
  • Body Material: copper, plated with tin
  • Thickness: 787.4 µm
  • Wire/Cable Gauge: 14 to 16 AWG
  • Wire/Cable Diameter: 4.9 mm
  • Voltage Rating: 600 V AC
  • Temperature Range: -25 to 90 °C
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Stud Size: M3.5
  • Tongue Thickness: 790 µm
  • Mountable: Yes
  • Holes: 1
  • Suitable for: various electronic devices and equipment
