Same model may have multiple batches, images only for reference.

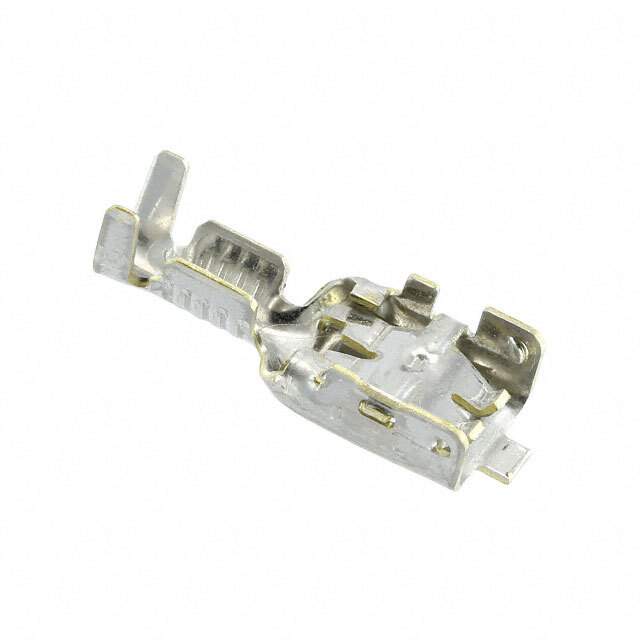

336075-3 Real Image
Same model may have multiple batches, images only for reference.

336075-3

Part No 336075-3
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 16-20AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 16-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.240" (6.10mm)
Length - Overall 0.669" (17.00mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.118" (3.00mm)
Base Product Number 336075
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A117952CT,-336075-3-CSI,-336075-3-SI,2266-336075-3TR,A117952TR
Standard Package 8,000
Win Source Part Number 1333633-336075-3
Ultra Librarian 3D Model Ultra Librarian 336075-3 CAD Model

Description

The TE Connectivity AMP Connectors 1333633-336075-3 is a quick connect, quick disconnect connector suitable for use in electronic devices.

  • Packaging: Reel
  • Color: None
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 16-20 AWG
  • Contact Material: Brass
  • Gender: Female
  • Standard Package: 8,000
  • Mounting: Free Hanging (in-line)
  • Terminal Type: Standard
  • Overall Length: 0.669" (17.00mm)
  • Insulation: Non-insulated
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.240" (6.10mm)
  • Insulation Diameter: 0.118" (3.00mm)
  • MSL Level: 1 (unlimited)
  • REACH: Vendor undefined
  • HTSUS: 8536.90.4000
  • Base Product Number: 336075
  • Other Part Numbers: A117952CT, -336075-3-CSI, -336075-3-SI, 2266-336075-3TR, A117952TR
  • RoHS3: Compliant
