Same model may have multiple batches, images only for reference.

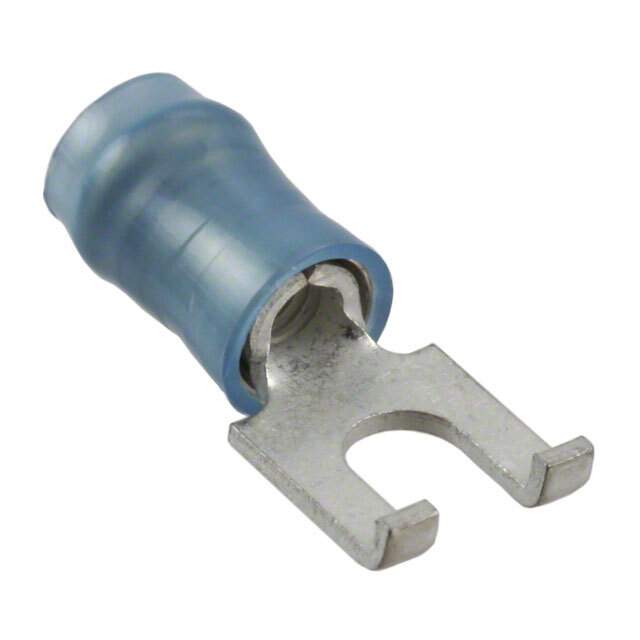

320861 Real Image
Same model may have multiple batches, images only for reference.

320861

Part No 320861
Manufacturer TE Connectivity
Catalog Terminals
Description CONN SPADE TERM 14-16AWG #6 BLU / Blue 6 Stud Spade Terminal Connector Crimp 14-16 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Spade Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Flanged
Stud/Tab Size 6 Stud
Width - Outer Edges 0.294" (7.47mm)
Length - Overall 0.768" (19.51mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Insulated
Features Serrated Termination
Color Blue
Contact Finish Tin
Contact Material Copper
Insulation Diameter 0.115" ~ 0.170" (2.92mm ~ 4.32mm)
Material - Insulation Polyamide (PA), Nylon
Length - Ring Center to Termination 0.203" (5.16mm)
Length - Termination 0.404" (10.26mm)
Tongue Inside Opening 0.145" (3.68mm)
Base Product Number 3208
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -320861-SI,A1076,2266-320861
Standard Package 1,000
Win Source Part Number 1333571-320861
Ultra Librarian 3D Model Ultra Librarian 320861 CAD Model

Description

The TE Connectivity AMP Connectors spade connectors are designed for use in 14-16 AWG wires.

  • Terminal Type: Flanged
  • Termination: Serrated
  • Insulation: Polyamide (PA) Nylon
  • Color: Blue
  • Packaging: Bulk
  • Mounting: Free Hanging (In-Line)
  • Stud/Tab Size: 6 stud
  • Overall Length: 0.768" (19.51mm)
  • Width: 0.294" (7.47mm)
  • Insulation Diameter: 0.115" ~ 0.170" (2.92mm ~ 4.32mm)
  • Tongue Inside Opening: 0.145" (3.68mm)
  • Contact Finish: Tin
  • Contact Material: Copper
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • Package: 1,000 connectors
