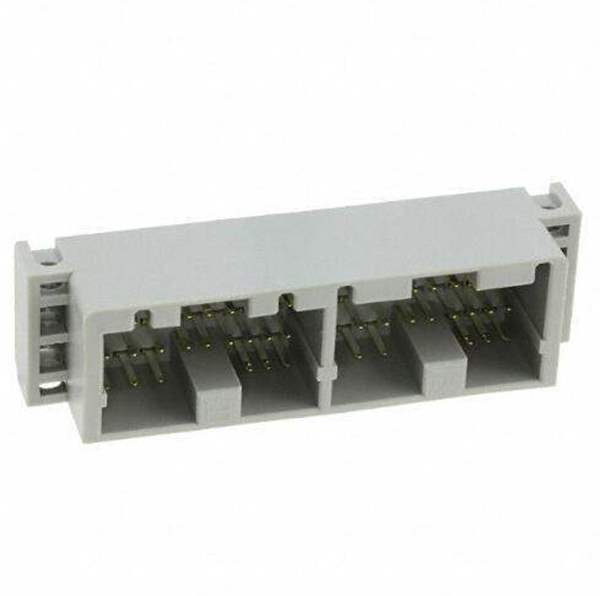

316370-6 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

316370-6

Part No 316370-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 48POS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series Multi-Lock
Package Tray
Product Status Active
Contact Type Tab
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Win Source Part Number WS1207787-316370-6
Ultra Librarian 3D Model Ultra Librarian 316370-6 CAD Model

Description

Connector Header Through Hole, Right Angle 48 position
