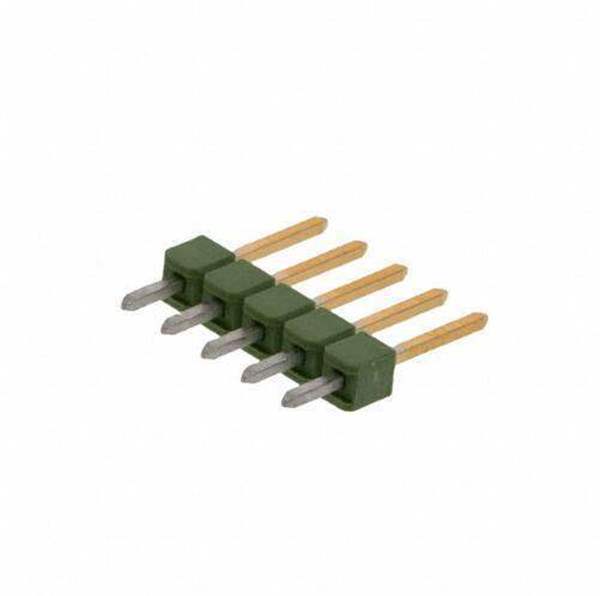

826629-5 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

826629-5

Part No 826629-5
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging  Bulk
Part Status Active
Contact Type Male Pin
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.264" (6.70mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.500" (12.70mm)
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Insulation Material Polybutylene Terephthalate (PBT)
Win Source Part Number WS1304374-826629-5
Ultra Librarian 3D Model Ultra Librarian 826629-5 CAD Model

Description

Connector Header Through Hole 5 position 0.100" (2.54mm)
